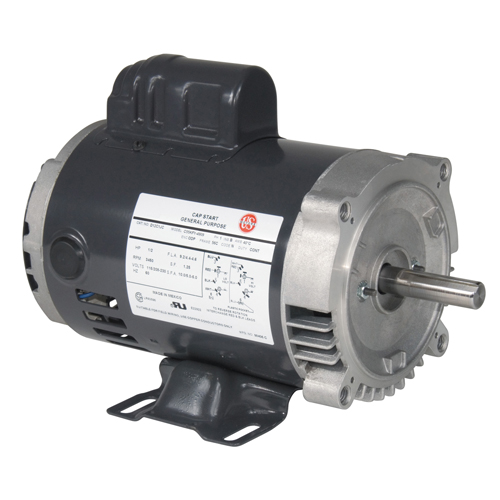

D32C2J14C U.S. Motors General Purpose Motor (1 1/2 HP, 145TC Frame, 1800 RPM)
| Applications | | For air compressors, commercial duty pumps, conveyors, blowers and general industrial equipment. | | | | Features | | Double Shielded Ball Bearings Locked Drive End Bearings; 50/60 Hz Motors Have 1.0 SF on 50 Hz; Class B Insulation; Continuous Duty; 40C Ambient; F1 Assembly; Reversible Rotation | | Tech Specs. | | Brand | U.S. Motors/Emerson General Purpose Single Phase C-Face Motor | | Model Number | D32C2J14C | | HP | 1 1/2 | | RPM | 1800 | | Volts | 115/208-230 | | SF | 1.15 | | Frame | 145TC | | Full Load Amps | 19.2/10.0-9.6 | | "C" Dim. | 13 | | Apx. Wt. (lb) | 43 | | Speed | Single | | Phase | Single | | Motor Mount | Footed | | Enclosure | ODP | | Type | General Purpose Single Phase C-Face Motor | | Rotation | Reversible | | Notes | Capacitor Start | | | | | | | | | |
Item Number:
D32C2J14C
Manufacturer:
U.S. Motors
Manufacturer Part No:
C063JFG5331012B
|
|
|
