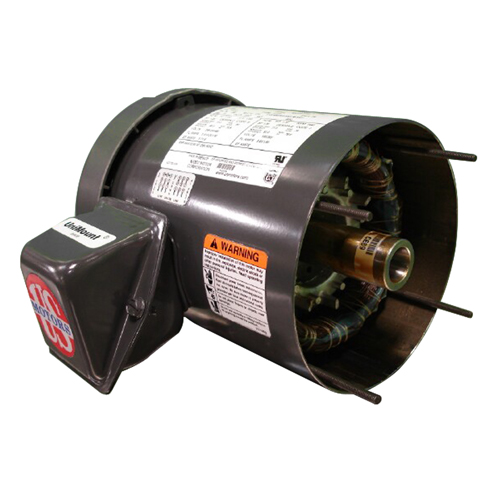

E177 U.S. Motor (1/3 HP, 56 Frame, UTP)
Please call to request more information about this U.S. Gear Motor/Module 1800-223-4898.
| Model_Number: |
CE86 |
| Cat # |
E177 |
| PRODUCT NAME: |
.33 HP - TE - 1750 |
| PHASETYPE: |
3_PHASE |
| MOTOR ENCLOSURE: |
TE |
| HORSEPOWER: |
.33 |
| KILOWATTS: |
0.2 |
| POLES: |
4 |
| NUMBER SPEEDS: |
1 |
| RPM: |
1750 |
| RPM 2: |
1750 |
| RPM 3: |
1735 |
| HERTZ: |
60 |
| VOLTS PRIMARY: |
208-230/460 |
| VOLTS : |
460 |
| VOLTS 2: |
230 |
| VOLTS 3: |
208 |
| FRME : |
56 |
| MOTOR TYPE: |
UTP |
| OPPOSITE END BEARING: |
6203-2Z-J/C3 |
| AMBIENT: |
40 |
| ROTATION: |
DUAL |
| SERVICE FACTOR: |
1.25 |
| STARTCAPMFD: |
N\A |
| SHIPPING WEIGHT: |
21 |
| BREAKDOWN TORQUE: |
375 |
| BREAKDOWN TORQUE UOM: |
PERCENT OF FLT |
| LOCKED ROTOR TORQUE: |
264 |
| LOCKED ROTOR TORQUE UOM: |
PERCENT OF FLT |
| INSULATION CLASS: |
F |
| KVA CODE LETTER: |
K |
| LOCKED ROTOR AMPS: |
3.6 |
| NEMA NOMINAL EFFICIENCY: |
75.5 |
| FULL LOAD AMPS PRIMARY: |
1.2-1.2/0.6 |
| SERVICE FACTOR AMPS PRIMARY: |
0-1.3/0.7 |
Item Number:
E177
Manufacturer:
U.S. Motors
Manufacturer Part No:
E177
