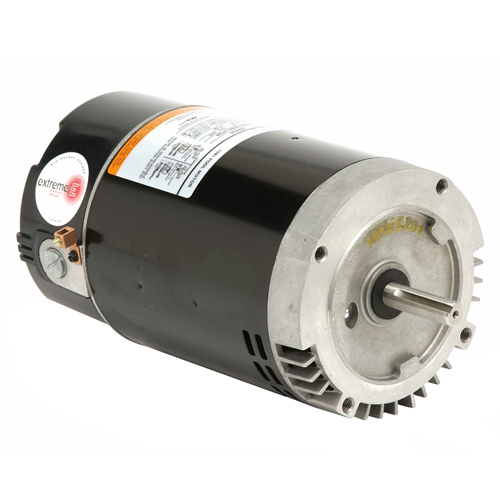

EB231 U.S. Motors C-Flange Pool and Spa Motor (2.5 HP, 56J Frame)
| Applications:
|
|
Replace C-Flange Pool and Spa Pump Motors, Replaces: Jacuzzi Bros., Hayward, Baker Hydro, Astral, ITT Marlow, Pentair/Pac Fab, Pentair/Purex/Hydrotech, Springwater, Speck Pumps, WMC...
|
| Features:
|
| Two Compartment
1081 Design
Open Dripproof
303 Stainless Steel Shaft
Triple Bearing Protection
Continuous Duty
Shaft Threads 7/16-20 UNF-2A
Sealed Ball Bearings
Thermally Protected
Class B Insulated
50C Ambient
Voltage Selection Device (Dual Voltage Only)
Switchless Design
6.5 Diameter Frame
|
|
Specifications:
|
|
| Model Number | EB231 |
| List Price | 487 |
| HP | 2.5 |
| RPM | 3450 |
| Volts | 230 |
| SF Amps | 10.5 |
| Shaft | Threaded |
| Frame | 56J |
| Efficiency | Standard Efficiency |
| Length Less Shaft | 11.77 |
| Shaft Threads | 7/16-20UNF-2A |
| Freq | 60 |
| Enclosure | Open Dripproof |
| A.O. Smith Replacement | UST1252 |
| A.O. Smith/Century Replacement | B231SE |
| Franklin Replacement | |
| Marathon Replacement | C1149 |
| Insulation Class | B |
| Weight (lbs.) | 33 |
| Notes | Full Service Factor, Full Rated |
Item Number:
EB231
Manufacturer:
U.S. Motors
Manufacturer Part No:
K063EAY5228013J
|
|
|
