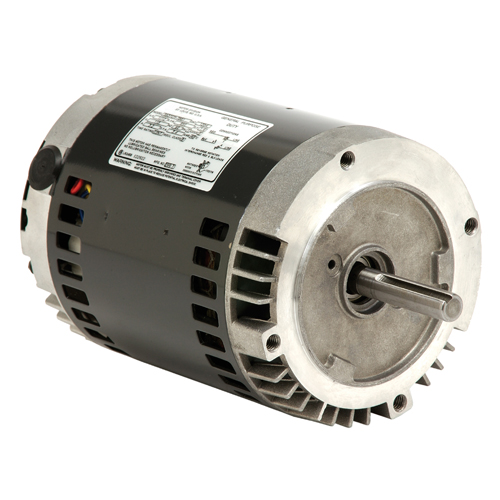

EC1502 U.S. Motors General Purpose Motor (1 1/2 HP, 56C Frame, 3600 RPM)
| Applications | | For air compressors, commercial duty pumps, conveyors, blowers and general industrial equipment. | | | | Features | | Double Shielded Ball Bearings Locked Drive End Bearings; 50/60 Hz Motors Have 1.0 SF on 50 Hz; Class B Insulation; Continuous Duty; 40C Ambient; F1 Assembly; Reversible Rotation | | Tech Specs. | | Brand | U.S. Motors/Emerson General Purpose Single Phase C-Face Motor | | Model Number | EC1502 | | HP | 1 1/2 | | RPM | 3600 | | Volts | 115/208-230 | | SF | 1.3 | | Frame | 56C | | Full Load Amps | 18.2/9.2-9.1 | | "C" Dim. | 12.4 | | Apx. Wt. (lb) | 30 | | Speed | Single | | Phase | Single | | Motor Mount | Footless | | Enclosure | ODP | | Type | General Purpose Single Phase C-Face Motor | | Rotation | Reversible | | Notes | Capacitor Start | | | | | | | | | |
Item Number:
EC1502
Manufacturer:
U.S. Motors
Manufacturer Part No:
C063HLG5016014J
|
|
|
