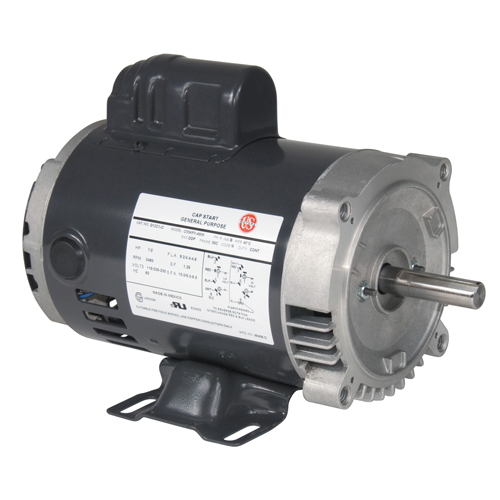

EC2002B U.S. Motors General Purpose Motor (2 HP, 56C Frame, 3600 RPM)
| Applications | | For air compressors, commercial duty pumps, conveyors, blowers and general industrial equipment. | | | | Features | | Double Shielded Ball Bearings Locked Drive End Bearings; 50/60 Hz Motors Have 1.0 SF on 50 Hz; Class B Insulation; Continuous Duty; 40C Ambient; F1 Assembly; Reversible Rotation | | Tech Specs. | | Brand | U.S. Motors/Emerson General Purpose Single Phase C-Face Motor | | Model Number | EC2002B | | HP | 2 | | RPM | 3600 | | Volts | 115/208-230 | | SF | 1.2 | | Frame | 56C | | Full Load Amps | 19.6/10.7-9.8 | | "C" Dim. | 12.4 | | Apx. Wt. (lb) | 33 | | Speed | Single | | Phase | Single | | Motor Mount | Footed | | Enclosure | ODP | | Type | General Purpose Single Phase C-Face Motor | | Rotation | Reversible | | Notes | Capacitor Start | | | | | | | | | |
Item Number:
EC2002B
Manufacturer:
U.S. Motors
Manufacturer Part No:
T063CLS1400013J
|
|
|
