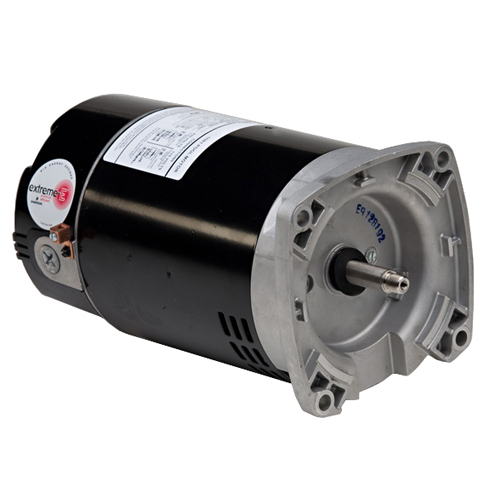

ET3230 U.S. Motors Square Flange Pool and Spa Motor (3 HP, 56Y Frame)
| Applications:
|
|
Replace Square Flange Pool and Spa Pump Motors.
|
| Features:
|
| Two Compartment 1081 Design
Open Dripproof
303 Stainless Steel Shaft
Triple Bearing Protection
Shaft Threads 1/2-20 UNF-2A
Continuous Duty
Sealed Ball Bearings
Thermally Protected
Class B Insulated
50C Ambient
Voltage Selection Device (Dual Voltage Only)
Switchless Design
6.5 Diameter Frame
|
|
Specifications:
|
|
| Model Number | ET3230 |
| List Price | 697 |
| HP | 3 |
| RPM | 3450 |
| Volts | 208-230 |
| SF Amps | 16.0-14.8 |
| Shaft Threads | 1/2-20 UNF-2A |
| Frame | 56Y |
| Efficiency | |
| Shaft | 308 Stainless Steal Shaft |
| Motor Type | |
| Bearings | Sealed Ball Bearings |
| Enclosure | Open Dripproof |
| Base | |
| "C" Dim. | |
| Phase | |
| Overload Protector | |
| Insulation Class | B |
| Weight (lbs.) | 44 |
| Notes | |
Item Number:
ET3230
Manufacturer:
U.S. Motors
Manufacturer Part No:
T063DNC2010013J
|
|
|
