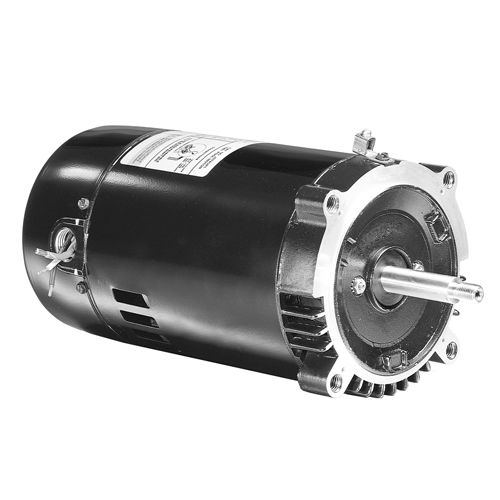

EUSQ1252 U.S. Motors Square-Flange, Switch Design, Pool and Spa Motor (2.5 HP, 48Y Frame)
| Applications: |
|
Replace Square-Flange Pool and Spa Pump Motors, Replaces: Jacuzzi Bros., Aqua Flow, Baker Hydro, Astral, ITT Marlow, Pentair/Pac Fab, Pentair/Purex/Hydrotech, Springwater, Speck Pumps, WMC...
|
| Features: |
| Two Compartment 1081 Design Open Dripproof 303 Stainless Steel Shaft Triple Bearing Protection Shaft Threads 1/2-20 UNF-2A Continuous Duty Sealed Ball Bearings Thermally Protected Class B Insulated 50C Ambient Voltage Selection Device (Dual Voltage Only) |
|
Specifications:
|
|
| Model Number |
EUSQ1252 |
| List Price |
513 |
| HP |
2.5 |
| RPM |
3450 |
| Volts |
230 |
| SF Amps |
10.4 |
| Shaft |
|
| Frame |
48Y |
| Efficiency |
Standard Efficiency |
| Length Less Shaft |
12.78 |
| Shaft Threads |
1/2-20UNF-2A |
| Freq |
60 |
| Enclosure |
Open Dripproof |
| A.O. Smith Replacement |
USQ1252 |
| A.O. Smith/Century Replacement |
B840 |
| Franklin Replacement |
13280 |
| Marathon Replacement |
C1335 |
| Insulation Class |
B |
| Weight (lbs.) |
31 |
| Notes |
Low Service Factor, Up Rated |
Item Number:
EUSQ1252
Manufacturer:
U.S. Motors
Manufacturer Part No:
T055CJR1350013J
|
|
|
