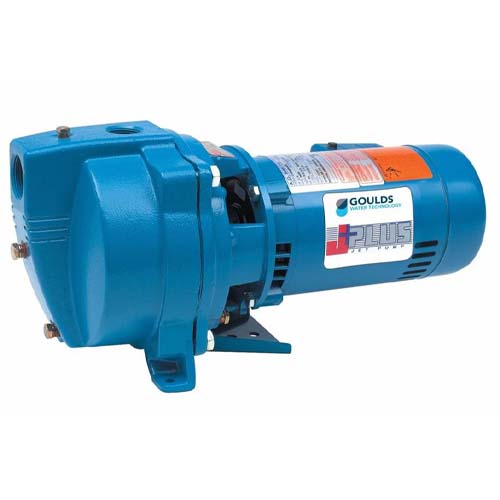

Goulds Pumps J15S Shallow Well Jet Pump (1-1/2 HP, 115/230 Volts, 1 Phase, 60hz, 1-1/4" Suction, 1" Discharge, JS+ Series)
|
Images may be generic. Please inquire
|
Your Price:
Contact Us For a Quote
|
| Applications |
| Homes; Cottages; Booster Service |
| |
| Features |
| One Year Factory Warranty |
|
| Compact: Design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter. |
|
| Serviceable: Back pullout design allows disassembly of pump for service without disturbing piping |
|
| Impeller: F.D.A. compliant, glass filled Noryl® is corrosion and abrasion resistant. |
|
| Diffuser (Guidevane): Diffuser has stainless wear ring for extended performance in abrasive conditions. |
|
| Powered for Continuous Operation: Can be oper¬ated continuously without damage. |
|
| Protected Mechanical Seal: Special diaphragm design retains water in the casing at all times to ensure the mechanical seal can never run dry. |
|
| Excellent Air Handling Ability: After initial priming the pump has the ability to re-prime itself even when air gets into the system. |
|
|
Tech Specs
|
|
Brand
|
Goulds
|
|
Type
|
Shallow Well Jet Pump
|
|
Model Number
|
J15S
|
|
HP
|
1-1/2
|
|
RPM
|
3500
|
|
Voltage
|
115/230
|
|
Phase
|
Single
|
|
Speed
|
1500 RPM
|
|
Hertz
|
60
|
|
Rotation
|
Clockwise when viewed from motor
|
|
Max Temperature
|
140
|
|
Shaft
|
Stainless Steel
|
|
Notes
|
Built-in overload with automatic reset
|
|
Suction Pipe Connection (in)
|
1-1/4" NPT
|
|
Discharge Pipe Connection (in)
|
1" NPT
|
|
Flow at 5 ft (30 psi)
|
26.6 gpm
|
|
Flow at 10 ft (30 psi)
|
24.7 gpm
|
|
Flow at 15 ft (30 psi)
|
21.6 gpm
|
|
Flow at 20 ft (30 psi)
|
18.1 gpm
|
|
Flow at 25 ft (30 psi)
|
14 gpm
|
|
Maximum Shut Off Pressure
|
80 psi
|
|
Pump Casing
|
Cast iron
|
|
Impeller Material
|
Glass filled noryl
|
|
Thermal Protection
|
YES
|
|
Maximum Temperature
|
140°F
|
|
Pump Length
|
19-1/4"
|
|
Pressure Switch
|
AS4 Preset (30-50 PSI)
|
|
Venturi
|
AD3342
|
|
Nozzle
|
AN022
|
|
Alternative Option (If not in stock)
|
Sta-Rite Pump SNF Click Here |
|
Parts List
|
|
Item Number:
J15S
Manufacturer:
Goulds Pumps
Manufacturer Part No:
J15S
Product Reviews
| (1 Rating, 0 Reviews) |
Average Rating:
|
Your Price: Contact Us For a Quote
10K258 Goulds MECH. SEAL ASSY
|
Your Price: Contact Us For a Quote
13K102 Goulds Hex Head Screw 1/2"x13x1-1/4" Zinc Plated Steel
|
Your Price: Contact Us For a Quote
13K335 Goulds 1/2" NPT Conduit Locknut
|
Your Price: Contact Us For a Quote
13K4 Goulds Hex Tap Screw (pkg of 4)
|
Your Price: Contact Us For a Quote
13K69 Goulds Hex Head Screw (pkg of 4) 3/8 -16UNC 7/8LG.
|
Your Price: Contact Us For a Quote
1K310 Goulds Motor Adapter
|
Your Price: Contact Us For a Quote
1K333 Goulds Casing - Shallow Well
|
Your Price: Contact Us For a Quote
2K706 Goulds Impeller 5 1/4"
|
Your Price: Contact Us For a Quote
3K68 Goulds Guide Vane
|
Your Price: Contact Us For a Quote
6K1 Goulds 1/8" Plate steel plug
|
Your Price: Contact Us For a Quote
6K100 Goulds Straight connector
|
Your Price: Contact Us For a Quote
6K102 Goulds Tubing
|
Your Price: Contact Us For a Quote
6K2 Goulds 1/4" Plate steel plug
|
Your Price: Contact Us For a Quote
6K24 Goulds Switch Connector
|
Your Price: Contact Us For a Quote
6K94 Goulds Elbow Connector
|
Your Price: Contact Us For a Quote
9K753 Goulds Pumps 48/56 MOTOR SUPPORT SPACER
|
Your Price: Contact Us For a Quote
|
Your Price: Contact Us For a Quote
AN022 Goulds Nozzle
|
Your Price: Contact Us For a Quote
AS4 Goulds Pressure Switch, 30 - 50 PSI, 115-230 Volts, 1 Phase
|
Your Price: Contact Us For a Quote
J07858R Goulds 1.5HP 1/60/115-230 ODP. MOTOR ONLY - PUMP NOT INCLUDED.
| |
|
|
|
