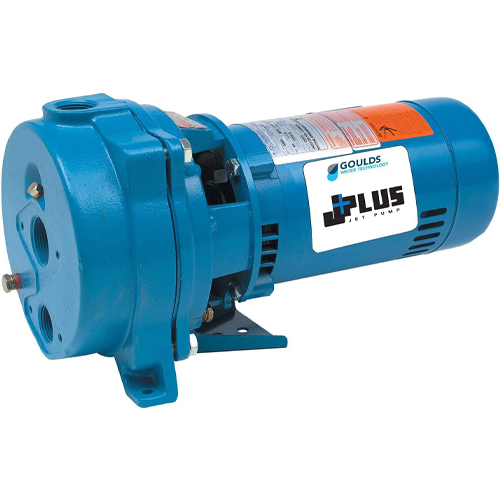

Goulds Pumps J7 Convertible Jet Pump (3/4 HP, 115/230 Volts, 1 Phase)
|
Images may be generic. Please inquire
|
Your Price:
Contact Us For a Quote
|
| Applications |
| Homes; Cottages; Booster Service |
| |
| Features |
| One Year Factory Warranty |
|
| Compact: Design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter. |
|
| Serviceable: Back pullout design allows disassembly of pump for service without disturbing piping |
|
| Impeller: F.D.A. compliant, glass filled Noryl is corrosion and abrasion resistant. |
|
| Diffuser (Guidevane): Diffuser has stainless wear ring for extended performance in abrasive conditions. |
|
| Powered for Continuous Operation: Can be operated continuously without damage. |
|
| Protected Mechanical Seal: Special diaphragm design retains water in the casing at all times to ensure the mechanical seal can never run dry. |
|
| Excellent Air Handling Ability: After initial priming the pump has the ability to re-prime itself even when air gets into the system. |
|
|
Tech Specs
|
|
Brand
|
Goulds
|
|
Model Number
|
J7
|
|
Series
|
J+
|
|
HP
|
3/4 |
|
RPM
|
3500
|
|
Voltage
|
115/230
|
|
Phase
|
Single
|
|
Hertz
|
60
|
|
Rotation
|
Clockwise when viewed from motor
|
|
Max Temperature
|
140
|
|
Shaft
|
Stainless Steel
|
|
Notes
|
Built-in overload with automatic reset
|
|
Suction Pipe Connection (in)
|
1-1/4" NPT
|
|
Discharge Pipe Connection (in)
|
1" NPT
|
|
Impeller Material
|
Glass filled noryl
|
|
Thermal Protection
|
Yes
|
|
Maximum Temperature
|
140°F
|
|
Type
|
Convertible Jet Pump for Shallow Well or Deep Well
|
|
Parts List
|
|
Item Number:
J7
Manufacturer:
Goulds Pumps
Manufacturer Part No:
J7
Your Price: Contact Us For a Quote
10K258 Goulds MECH. SEAL ASSY
|
Your Price: Contact Us For a Quote
2K60 Goulds Impeller
|
Your Price: Contact Us For a Quote
6K2 Goulds 1/4" Plate steel plug
|
Your Price: Contact Us For a Quote
6K68 Goulds 1/2' Plt. Stl. Plug
|
Your Price: Contact Us For a Quote
AD3536 Goulds Repair Parts DIFFUSER
|
Your Price: Contact Us For a Quote
J05853R Goulds 3/4HP 1/60/115-230 ODP
|
|
|
|
