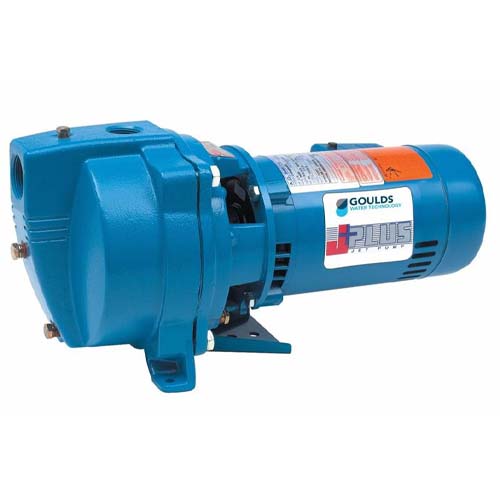

Goulds Pumps J5SH High Pressure Jet Pump (1/2 HP, 115/230 Volts, 1 Phase, 60hz, 1-1/4" Suction, 1" Discharge, JS+ Series)

Images may be generic. Please inquire

See Reviews Your Price: Contact Us For a Quote Email this page to a friend

• Description
• Details
• Reviews

Applications
Homes; Cottages; Booster Service
Features
Basic Pump Unit: Includes pump with integral shallow well jet (nozzle and venturi), motor, pressure switch and tubing.
One Year Factory Warranty
Compact: Design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter.
Serviceable: Back pullout design allows disassembly of pump for service without disturbing piping
Impeller: F.D.A. compliant, glass filled No¬ryl® is corrosion and abrasion resistant.
Diffuser (Guidevane): Diffuser has stainless wear ring for extended performance in abrasive conditions.
Powered for Continuous Operation: Can be oper¬ated continuously without damage.
Protected Mechanical Seal: Special dia¬phragm design retains water in the casing at all times to ensure the mechanical seal can never run dry.
Excellent Air Handling Ability: After initial priming the pump has the ability to re-prime itself even when air gets into the system.

Tech Specs
Brand	Goulds
Type	Shallow Well Jet Pump
Model Number	J5SH
HP	1/2
Voltage	115/230
Phase	Single
RPM	3500
Hertz	60
Rotation	Clockwise when viewed from motor
Max Temperature	140
Shaft	Stainless Steel
Notes	Built-in overload with automatic start
Impeller Material	Glass filled noryl
Suction Pipe Connection (in)	1-1/4" NPT
Discharge Pipe Connection (in)	1" NPT
Maximum Shut Off Pressure	83 psi
Maximum Temperature	140°F
Pump Length	17-1/4"
Flow at 5 ft (30 psi)	11.3 gpm
Flow at 10 ft (30 psi)	10 gpm
Flow at 15 ft (30 psi)	8.6 gpm
Flow at 20 ft (30 psi)	7 gpm
Flow at 25 ft (30 psi)	5.2 gpm
Pressure Switch & Tubing	Part # AS4 - Preset (30-50 PSI)
Venturi	Part # AD3328
Nozzle	Part # AN019
Parts List	Click Here







Support Documents (pdf)
Product Literature

Item Number: J5SH

Manufacturer: Goulds Pumps

Manufacturer Part No: J5SH
