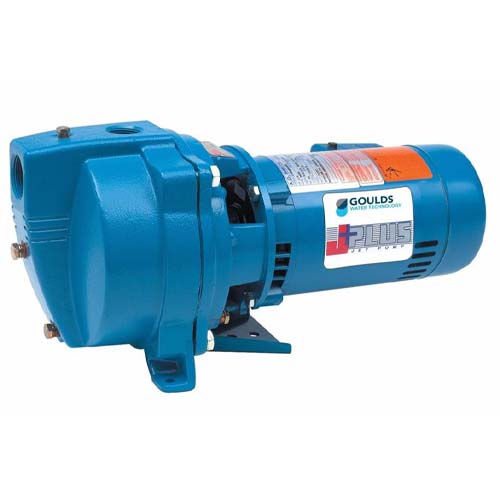

Goulds Pumps J7S Shallow Well Jet Pump (3/4 HP, 115/230 Volts, 1 Phase, 60hz, 1-1/4" Suction, 1" Discharge, JS+ Series)

Images may be generic. Please inquire

Your Price: Contact Us For a Quote Email this page to a friend

• Description
• Details
• Reviews

Applications
Homes; Cottages; Booster Service
Features
One Year Factory Warranty
Compact: Design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter.
Serviceable: Back pullout design allows disassembly of pump for service without disturbing piping
Impeller: F.D.A. compliant, glass filled Noryl® is corrosion and abrasion resistant.
Diffuser (Guidevane): Diffuser has stainless wear ring for extended performance in abrasive conditions.
Powered for Continuous Operation: Can be oper¬ated continuously without damage.
Protected Mechanical Seal: Special diaphragm design retains water in the casing at all times to ensure the mechanical seal can never run dry.
Excellent Air Handling Ability: After initial priming the pump has the ability to re-prime itself even when air gets into the system.

Tech Specs
Brand	Goulds
Model Number	J7S
Type	Shallow Well Jet Pump
Motor	NEMA Standard
HP	3/4
RPM	3500
Voltage	115/230 Capacitor start
Phase	Single
Hz	60
Rotation	Clockwise when viewed from motor end
Max Temperature	140 F
Shaft	Stainless Steel
Notes	Built-in overload with automatic reset
Suction Pipe Connection (in)	1-1/4" NPT
Discharge Pipe Connection (in)	1" NPT
Pressure Switch	AS4 Preset (30-50 PSI)
Venturi	AD3336
Nozzle	AN018
Weight	47 lbs.
Length	18-1/4"
Width	9-7/8"
Height	8-3/4"
Alternative Option (If not in stock)	Berkeley Pump 7HN Click Here
Parts List	Click Here







Support Documents (pdf)
Product Literature

Item Number: J7S

Manufacturer: Goulds Pumps

Manufacturer Part No: J7S
