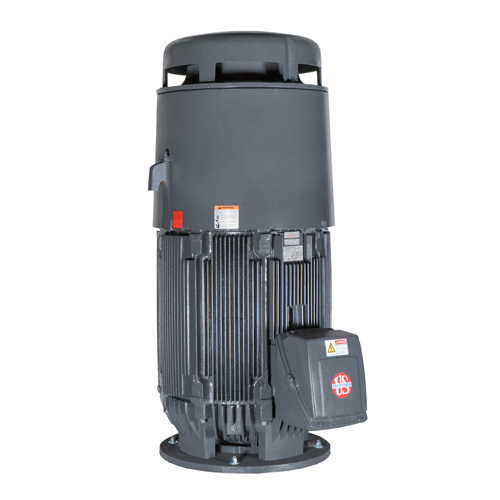

NT2P1BE U.S. Motors Vertical Solid Shaft Normal Thrust Motor (2 HP, 230/460 Volts, 3600 RPM)
|
Applications |
|
For use on Vertical End Suction, Short Couple Pumps, Centrifugal and Non-Clog Pumps. |
|
|
|
Features |
|
30 HP & Below Can Be Re-rated For 208/415 Volt | 50 Hertz Operation at 1.0 Service Factor
|
|
Class F Insulation, Class B Rise At Full Load | 40C Ambient, NEMA Design B Performance
|
|
230/460 Volt Motors Suitable For 230 Volt Part Winding Start | Suitable For Operation On VFD Per NEMA MG-1 Part 30
|
|
1.15 Service Factor (Sine Wave), 40C Ambient | Corrosion Resistant Mill & Chemical Duty Paint
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Tech Specs | | Brand | U.S. Motors | | Model Number | NT2P1BE | | HP | 2 | | RPM | 3600 | | Volts | 230/460 | | Frame | 145VP | | Down Thrust (lbs.) | 4.8/2.4 | | Base Dia (in.) | 10 | | Enclosure | TEFC | | Apx. Wt. (lb) | 220 | | Efficiency | Premium Efficient | | Phase | Three | | Base | "P" Base | | 5 FL Efficiency | 85.5 | | Type | TVS | | Notes | See Product Literature | | | | | | | | | | | | |
Item Number:
NT2P1BE
Manufacturer:
U.S. Motors
Manufacturer Part No:
DK02
|
|
|
