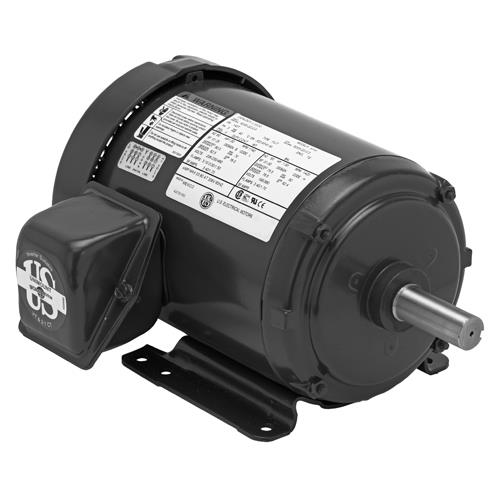

S5P1A U.S. Motors General Purpose Motor (5 HP, 184T Frame, Three Phase, 3600 RPM)
| Applications | | For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment. | | | | Features | | Class F Insulation, Class B Rise at Full Load On 60 Hertz Sine Wave Power, Aluminum Frame (180-280), Rolled Steel (56-140), "CE" Mark on Nameplate (140 Frame & Larger), Shaft Slinger on Pulley End, Full 50 & 60 Hertz Operating Data on Nameplate (03), Full HP @ 50 Hz, 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power, Regreasable Shaft-End Bearings 180 Frame & Up, Sealed Bearings 56-140 Frame, Double Shielded 180-280 Frame, Suitable for Wye-Delta Start 250 Frame & Larger, Dual Voltage Ratings Suitable for Part Winding Start (PWS) on Low Voltage, Lifting Provisions 180 Frame & Up, Conversion Kits: Drip Cover & Brakes (56-210 Frame), See Pages 263-266 | | Tech Specs. | | Brand | U.S. Motors/Emerson Premium Efficient General Purpose Industrial Motor | | Model Number | S5P1A | | HP | 5 | | RPM | 3600 | | Volts | 208-230/460 | | "C" Dim | 15.9 | | Frame | 184T | | Full Load Amps | 13.6-12.1/6.1 | | Full Load Efficiency | 88.5 | | Apx. Wt. (lb) | 70 | | SF | 1.15 | | Phase | Three | | Motor Mount | Foot Mounted | | Enclosure | TEFC | | Type | General Purpose Industrial Motor | | | | | | | | | | | | | | | |
Item Number:
S5P1A
Manufacturer:
U.S. Motors
Manufacturer Part No:
DA52
|
|
|
