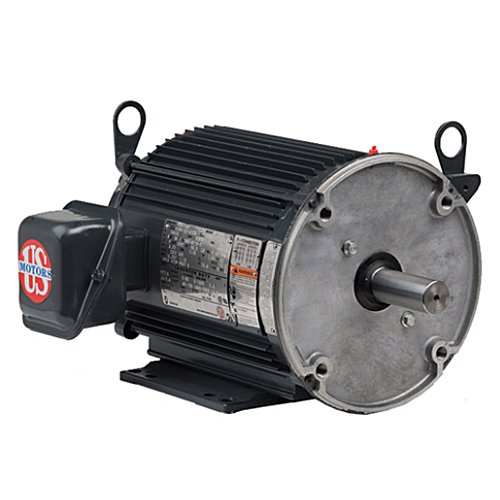

UN10T2GC U.S. Motors Vector Duty Motor (10 HP, 575 Volts, 3600 Max RPM)
|
Applications |
|
For use with inverters and in vector drive applications. Particularly suited for applications up to a 2000:1 constant torque speed range. Typical applications: machine tools, material handling, packaging machines, test equipment, and other industrial machinery. |
|
|
|
Features |
|
Constant Torque Operation from Zero to Base Speed with Vector Drives | Constant HP Operation to Twice Base Speed (Except Where Noted)
|
|
Continuous Duty at 40C Ambient | Optimized for Operation with IGBT and Intelligent-Power-Module Drives
|
|
(NEMA Design-A) | Class F Insulation
|
|
Normally Closed Thermostats Standard (One Per Phase) | Shaft Grounding Ring Option on All Ratings
|
|
F-1 Standard, Field Convertible to F-2 for 180 Frame and Above | Removable Base 180 Frame and Above
|
|
Steel 56-140 Frame; Aluminum 180 Frame & Above | Encoder and Brake Provision on All Ratings, See Page 101
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Tech Specs | | Brand | U.S. Motors | | Model Number | UN10T2GC | | HP | 10 | | Max RPM | 3600 | | Base RPM | 1800 | | Volts | 575 | | Frame | 215TC | | "C" Dim. (in.) | 23 | | Enclosure | TENV | | Apx. Wt. (lb) | 125 | | Full Load Amps | 10 | | Rated Torque (lb.-in.) | 355.2 | | Inertia (ib.-in.-sec2) | 0.494 | | Constant Torque | 2000:1 | | Type | Vector Duty | | Notes | See Product Literature | | | | | | | | | | | | |
Item Number:
UN10T2GC
Manufacturer:
U.S. Motors
Manufacturer Part No:
BV12
|
|
|
