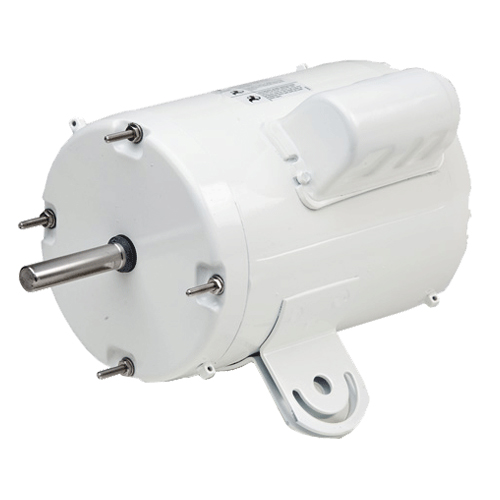

WD13AA2PZ7 U.S. Motors Washdown Motor (1/3 HP, 56YZ Frame, 1800 RPM)
| Applications | | Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors. | | | | Features | | Class F Insulation; BISSC Certified, Smooth Design For Easy Cleaning; USDA Approved Non-Toxic White Epoxy Paint; V-Ring Rotating Lip Seal On Shaft End; F1 Assembly Position; Double Contact Sealed Ball Bearings; Reversible Rotation; Internal Corrosion Protection On Rotor, Stator, Winding & Frame; Stationary Grease Seal On Both Ends; 303 Stainless Steel Shaft; Moisture-Resistant Gasketed Conduit Box With NPT Lead Holes; Multiple Stainless Steel T-type Drains | | Tech Specs. | | Brand | U.S. Motors/Emerson Single Phase Washdown Motor | | Model Number | WD13AA2PZ7 | | HP | 1/3 | | RPM | 1800 | | Volts | 115/230 | | SF | 1 | | Frame | 56YZ | | Full Load Amps | 4.9/2.5 | | "C" Dim. | 10.9 | | Apx. Wt. (lb) | 24 | | Speed | Single | | Phase | Single | | Motor Mount | Yoke Mount | | Enclosure | TEAO | | Type | Non-Oscillating Totally Enclosed Air Over (TEAO) Fan Motors | | Rotation | Reversible | | Notes | Permanent Split Capacitor | | | | | | | | | |
Item Number:
WD13AA2PZ7
Manufacturer:
U.S. Motors
Manufacturer Part No:
K063FBN4933035B
|
|
|
