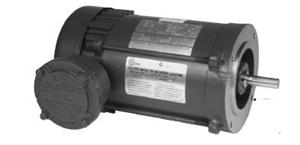

XS12CA1J U.S. Motors Hazardous Location Motor (1/2 HP, 56 Frame, 3600 RPM)
| Applications | | For use on air compressors, pumps, conveyors, blowers and general industrial equipment located in hazardous areas. | | | | Features | | UL Listed & CSA Certified; Temp Code T3C; Class B Insulation; Continuous Duty; Totally Enclosed Fan Cooled Except Where Noted; 40C Ambient Rated; F1 Assembly | | Tech Specs. | | Brand | U.S. Motors/Emerson Single Phase Hazardous Location Motor | | Model Number | XS12CA1J | | HP | 1/2 | | RPM | 3600 | | Volts | 115/208-230 | | SF | 1 | | Frame | 56 | | Full Load Amps | 8.8/4.1-4.4 | | "C" Dim. | 13.2 | | Apx. Wt. (lb) | 29 | | Speed | Single | | Phase | Single | | Motor Mount | Footed | | Enclosure | TEFC | | Type | Single Phase Hazardous Location Motor | | Temp Code | T3C | | Notes | Class I (Group C & D), Class II (Group E, F & G) | | | | | | | | | |
Item Number:
XS12CA1J
Manufacturer:
U.S. Motors
Manufacturer Part No:
CH63AAB1001015B
|
|
|
