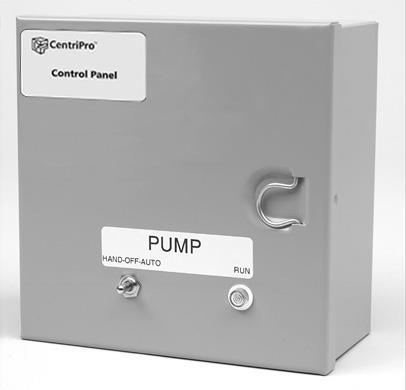

Applications:
Provides automatic or manual pump operation for single phase systems. Overload protection must be provided by the pump.
FEATURES
• High level alarm circuit includes spring loaded through doormounted silence switch for manual
silence of alarm horn.
• Through door mounted alarm test switch insures proper operation of the alarm circuit without the need to open the panel.
• Through door mounted pump run light.
• Top mounted high intensity flashing red light provides 360° visibility.
• Pulsating, corrosion proof alarm horn.
• Color coded wiring, screw type terminals and plug in sockets, insure ease of field servicing.
• Field wiring diagram, panel schematic and installation instructions included.
• Entire unit is UL and CUL listed.
Specifications:• Single phase, 60 Hz• NEMA 1, steel enclosure standard• May be used on 1⁄3 through 5 HP pumps.• Separate level control switch(es) required.• Includes a through-door hand-off auto switch and pump run light.
Support Documents
Notes
Item Number:
A3-2012
Manufacturer:
Goulds Pumps
Manufacturer Part No:
A3-2012
