Application:
Provides automatic or manual pump operation, and three leg motor protection for three phase systems. Select panel by maximum amp draw and voltage.
Specifications:
• Three phase, 60 Hz
• NEMA 1, steel enclosure standard
• NEMA Rated Starter with solid-state, Class 5, 10, 20, 30, adjustable overloads. The solid-state, adjustable overload also provides protection against phaseloss or single-phasing, and phase on balance.

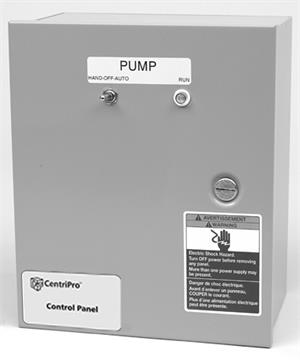

• Through-door hand-off-auto switch and pump run light
• 115V transformer for pilot circuit
FEATURES
• High level alarm circuit includes spring loaded through doormounted silence switch for manual silence of alarm horn.
• Through door mounted alarm test switch insures proper operation of the alarm circuit without the need to open the panel.
• Through door mounted pump run light.
• Top mounted high intensity flashing red light provides 360° visibility.
• Pulsating, corrosion proof alarm horn.
• Color coded wiring, screw type terminals and plug in sockets, insure ease of field servicing.
• Field wiring diagram, panel schematic and installation instructions included.
• Entire unit is UL and CUL listed.
Support Documents
Notes
Item Number:
A32510
Manufacturer:
Goulds Pumps
Manufacturer Part No:
A32510
