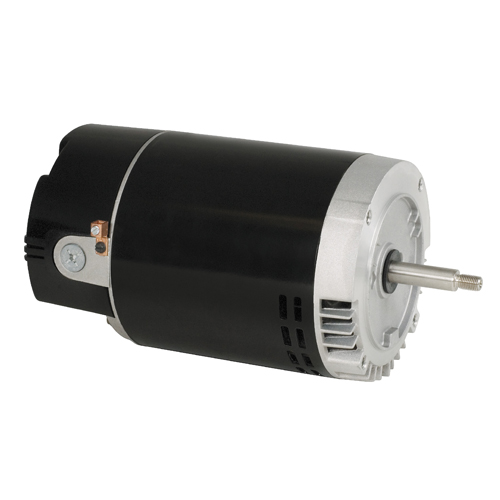

ASB625 Pool Cleaner Replacement Motors (3/4 HP, 3450 RPM, 230/115 Voltage, 56JZ Frame)
| Applications |
| Pool Cleaner Replacement Motors |
| |
| Features |
| Two Compartment |
|
| Shaft Threads - 1/2-20 UNF-2A |
|
| 1081 Design |
|
| Continuous Duty |
|
| Voltage Selection Device |
|
| Class B Insulated |
|
| Open Drip Proof |
|
| 300 Series Stainless Steel Shaft |
|
| Thermally Protected |
|
| Optimized internal airflow design minimizes heat and moisture buildup inside the motor |
|
| Internal bearing cover protects the drive/ pump end ball bearing from water and debris that may occur inside of the motor |
|
|
Specifications
|
|
Brand
|
US Motor |
|
Catalog Number
|
ASB625
|
|
Type
|
Pool Cleaner Replacement Motors
|
|
Catalog Number
|
ASB625
|
|
HP
|
3/4
|
|
NEMA SF
|
1.50
|
|
Max Pump SF
|
1.65
|
|
THP
|
1.25
|
|
RPM
|
3450
|
|
Voltage
|
230/115
|
|
FREQ
|
60
|
|
NEMA SF Amps
|
6.3 / 12.6
|
|
Max Pump SF Amps
|
7.0 / 14.0
|
|
Motor Frame
|
56JZ
|
|
Length Less Shaft
|
10.76
|
|
Weight
|
23 lbs
|
|
Replacement Brand
|
Polaris/Zodiac
|
Item Number:
ASB625
Manufacturer:
U.S. Motors
Manufacturer Part No:
ASB625
|
|
|
