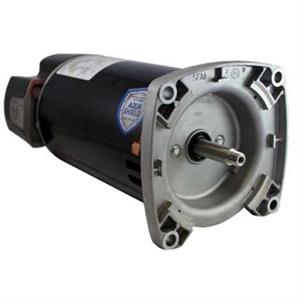

ASQ260 U.S. Motors Aqua-Shield Square Flange Pool and Spa Motor (2.6 THP, 230 Voltage)
| Applications |
| Optimized internal airflow design minimizes heat and moisture buildup inside the motor. Internal bearing cover protects the drive/ pump end ball bearing from water and debris that may occur inside of the motor. Three additional layers of drive/pump end bearing protection: Double Sealed Ball Bearing, Lip Seal, Water Slinger. |
| |
| Features |
| Two Compartment |
|
| Shaft Threads - 1/2-20 UNF-2A |
|
| 50 C Ambient |
|
| Triple Bearing Protection |
|
| 1081 Design |
|
| Continuous Duty |
|
| Open Dripproof |
|
| Sealed Ball Bearings |
|
| Thermally Protected |
|
| Class B Insulated |
|
| 300 Series Stainless Steel Shaft |
|
|
Specifications
|
|
Brand
|
U.S. Motors
|
|
Catalog Number
|
ASQ260
|
|
Type
|
Square Flange Pool and Spa Motors
|
|
Series
|
AQUA-SHIELD EZ48
|
|
THP
|
2.6
|
|
RPM
|
3450
|
|
Voltage
|
230
|
|
Frequency
|
60
|
|
Amps
|
11.2
|
|
Motor Frame
|
48Y
|
|
Length Less Shaft
|
13.3
|
|
Weight
|
30
|
|
Efficiency
|
Standard
|
|
Category
|
S
|
|
Warranty
|
1 Year
|
Item Number:
ASQ260
Manufacturer:
U.S. Motors
Manufacturer Part No:
ASQ260
|
|
|
