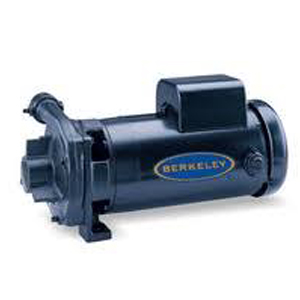

B53602S Berkeley Straight Centrifugal Pumps (3 HP, 1 Phase, 230 Voltage, 1-1/2" Suction, 1-1/4" Discharge)
| Applications |
| General farm or home irrigation, air conditioning and refrigeration |
| |
| Features |
| Manufacture Carefully manufactured with materials best suited for water pump applications assures a unit with long life and dependability. |
|
| Bracket Sturdy cast iron bracket houses seal and maintains positive alignment between motor and volute case. |
|
| Volute Case Precision machined gray cast iron, with NPT tapped openings for suction and discharge. Standard discharge position is horizontal. Volute may be rotated for vertical-up discharge. |
|
| Impeller Enclosed multi-vane silicon bronze impeller is balanced to eliminate vibration and provide smooth, quiet operation. Impeller is threaded on motor shaft for positive alignment. |
|
| Shaft Seal Self-adjusting, water-cooled, mechanical shaft seal prevents leakage and eliminates need for drain piping. Run-in and periodic adjustment is not required. |
|
| Motor Shaft Stainless steel shaft is threaded for direct mounting of impeller. Shaft extension to impeller is short to increase shaft rigidity and to extend bearing life. |
|
| Motor Heavy-duty, 3 HP, flange-mounted, motor designed for continuous 3600 RPM operation. Two ball bearings are permanently lubricated, eliminating the need for re-lubrication service. Open, drip-proof enclosures are standard. |
|
|
Specifications
|
|
Brand
|
Berkeley
|
|
Catalog Number
|
B53602S
|
|
Type
|
Straight Centrifugal Pump
|
|
Series
|
Type C
|
|
HP
|
3
|
|
Phase
|
1
|
|
Voltage
|
230
|
|
Suction
|
1-1/2"
|
|
Discharge
|
1-1/4"
|
|
RPM
|
3600
|
|
Warranty
|
12 Month limited warranty
|
Item Number:
B53602S
Manufacturer:
Berkeley Pumps
Manufacturer Part No:
B53602S
|
|
|
