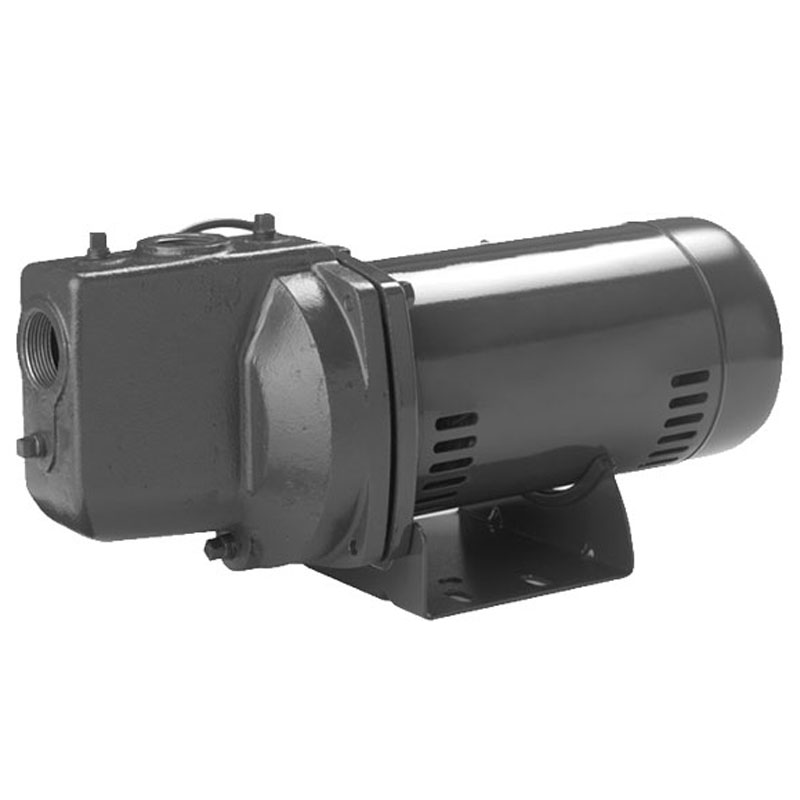

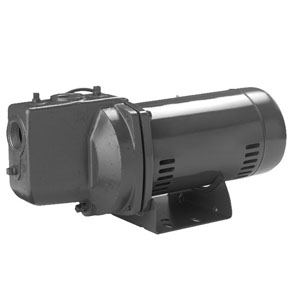

BFH50 Berkeley Shallow Well, Cast Iron Jet Pump (1/2 HP, 115/230 Voltage, 1 Phase, 1" NPT Discharge, 1-1/4" NPT Suction, 23 Max GPM, Cast Iron)
| Applications |
| The FH Series Jet Pump provides best-in-class performance for shallow wells up to 25 deep and flows over 20 GPM. Designed for the professional with heavy-duty cast iron construction, Noryl internals and factory wired pressure switch for years of extended service. Available in 1/2 HP model. APPLICATIONS: Ideal for homes, farms and cottages. |
| |
| Features |
| Precision Molded Noryl Impeller with 300 grade Stainless Insert High performance and efficiency with high strength for longevity. |
|
| Precision Molded Reinforced Polypropylene Diffuser, Nozzle and Venturi High performance and efficiency with superior abrasion resistance. |
|
| Cast Iron Pump Case with 1-1/4 Suction and 1 Discharge Ports,Two 1/4 Auxiliary Pressure Ports and Cleanout Plug Facilitates plumbing of accessories and easy access to nozzle for cleanout. |
|
| Rugged Cast Iron Seal Plate Positive alignment between pump case and motor. |
|
| Factory Installed Pressure Switch with Fixed 20 lb. Differential and 1/4 FNPT Port Industry standard switch is easily field replaceable. |
|
| Every Pump Unit is Factory Tested Peace of mind for you and your customers. |
|
|
Specifications
|
|
Brand
|
Berkeley
|
|
Catalog Number
|
BFH50
|
|
Type
|
Shallow Well Jet Pump
|
|
Series
|
FH
|
|
HP
|
1/2
|
|
Voltage
|
115/230
|
|
Phase
|
1
|
|
Discharge
|
1" NPT
|
|
Suction
|
1-1/4" NPT
|
|
Max GPM
|
23
|
|
Body
|
Cast Iron
|
|
Shut-Off Pressure
|
52-61 PSI
|
|
Warranty
|
1 year limited warranty
|
Item Number:
BFH50
Manufacturer:
Berkeley Pumps
Manufacturer Part No:
BFH50
|
|
|
