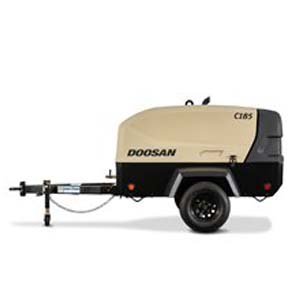

The C185WDO from Doosan Portable Power has been redesigned with advanced engineering and cost-effective features, making it a valuable addition to any rental fleet. Now powered by a dependable Doosan D18 engine, this 3-cylinder, fuel-efficient engine provides plenty of power for all your various applications while saving you big at the pump. This powerful air compressor is protected by a durable but refined canopy design that lifts easily, allowing ample access to all service points for faster maintenance routines. Doosan Portable Power’s C185WDO is the answer to your compressor needs.
Free-Air Delivery – cfm (m3/min)185 (5.24)
Rated Operating Pressure – psig (bar)100 (6.9)
Pressure Range – psig (bar) 80 – 125 (5.5 – 8.6)
Air Discharge Outlet Size – in (mm)0.75 (19)
Air Discharge Outlet Quantity - 2
Fuel Tank Capacity – gal (L)34.5 (130.6)
Make/model Doosan D18
Emissions Tier Level Tier 4 Final (T4F)
Number of Cylinders 3
Displacement – cu in (L) 110 (1.8)
Rated Speed – rpm2600
Idle Speed – rpm 1700
Bhp @ Rated Speed (kW) 49 (36.6)
Electrical – volts12
Hours of Operation @ Full Load 12.6
Length – in (mm) 137.4 (3490)
Width – in (mm) 68.5 (1740)
Height – in (mm) 67.5 (1715)
Track Width – in (mm) 60.0 (1524)
Tire size – in13
Shipping Weight – w/o fuel – lb (kg) 2209 (1002)
Working Weight – w fuel – lb (kg) 2455 (1113)
Item Number:
C185WDO-T4F
Manufacturer:
Doosan
Manufacturer Part No:
C185WDO-T4F
