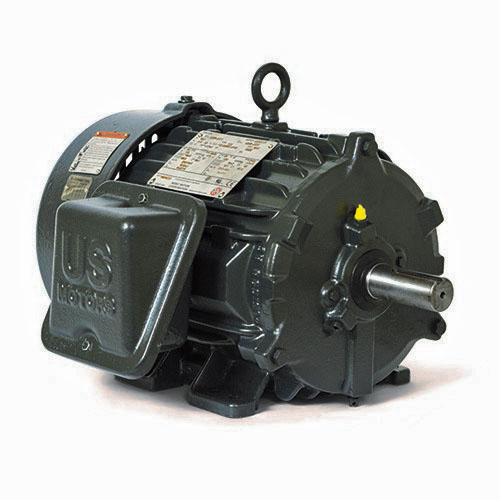

CD32P1G U.S. Motors General Purpose World Motor CORRO-Duty Motor (1-1/2 HP, 3600 RPM, 575 Voltage, 143T Frame, 3 Phase, TEFC)
|
Applications |
|
For pulp & paper, mill & chemical and any other severe duty environments found in the process industries. |
|
|
|
Features |
|
Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power |
|
|
All Cast Iron Construction |
|
|
Corrosion Resistant Mill & Chemical Duty Paint |
|
|
Stainless Steel Nameplate & Zinc Plated Hardware |
|
|
Dual Bearing Seals On Pulley End For IP55 Protection |
|
|
NEMA Design B Performance On 60 Hz Sine Wave Power |
|
|
Regreasable Open Bearings |
|
|
Lifting Provisions, Epoxy Coated Rotor |
|
|
Field Convertible To F2 Mounting |
|
|
Brass Breather Condensation Drains |
|
|
Oversized Conduit Box - 1 Size Larger Than NEMA Standard |
|
| Specifications | | Brand | U.S. Motors | | Catalog Number | CD32P1G | | Type | General Purpose Motor | | Series | World Motor CORRO-DUTY | | HP | 1-1/2 | | RPM | 3600 | | Voltage | 575 | | Frame | 143T | | SF | 1.15 | | "C" Dim.
(inches) | 13.7 | | Ship Wt. (lbs) | 60 | | Full Load
Eff. | 84 | | Phase | 3 | | Enclosure | TEFC | | Symbol | DS-3CEW | | Type | NEMA Premium Efficient | | Notes | See Support Documents |
Item Number:
CD32P1G
Manufacturer:
U.S. Motors
Manufacturer Part No:
CD32P1G
|
|
|
