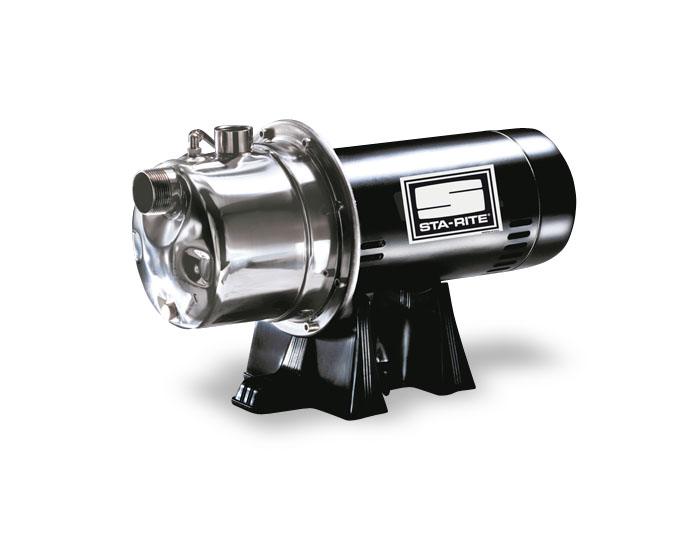

CJ90E STA-RITE Shallow Well Jet Pump, Stainless Steel (1 HP, 115/230V, 1 Phase, 25' Max. Lift, 11 GPM @ 10 FT/40 PSI)
| Applications |
| Water Systems and Irrigation for Homes, Farms and Cottages |
| |
| Features |
| ClearJet models provide excellent performance with good pressure for wells to 25' deep |
|
| Stainless steel pump body provides maximum resistance to corrosion |
|
| One-piece threaded shaft for positive impeller drive and alignment |
|
| Built-in Jet - High strength thermoplastic components are corrosion resistant |
|
| Mechanical Shaft Seal - Highly polished carbon-ceramic and stainless steel construction |
|
| Self-priming after the priming chamber has been filled with water |
|
|
|
|
|
|
|
|
|
|
|
|
Specifications
|
|
Brand
|
STA-RITE
|
|
Model Number
|
CJ90E
|
|
Type
|
Self-Priming Shallow Well Jet Pump
|
|
STA-RITE Pump Series
|
CJ - ClearJet Series
|
|
HP
|
1
|
|
Volts
|
115/230
|
|
Phase
|
1
|
|
Pressure Switch Setting
|
30-50 PSI
|
|
Suction Size
|
1-1/4" NPT
|
|
Discharge Size
|
1" NPT
|
|
Max. Lift
|
25'
|
|
Max. Temperature
|
122F
|
|
Max. Inlet Pressure
|
50 PSI
|
|
Max. Shut-off Pressure
|
64 PSI
|
|
GPM @ 10 FT/40 PSI
|
11
|
|
Max. GPM
|
16.1
|
|
Pump Body
|
304 Stainless Steel
|
|
Shaft
|
416 Stainless Steel
|
|
Jet Assembly, Diffuser, Impeller
|
Noryl
|
|
Pressure Switch
|
Included
|
|
Warranty
|
1 Year
|
|
Weight lbs.
|
31
|
|
Notes & Pump Curve
|
See Support Documents
|
|
Pump Manual
|
See Support Documents
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Item Number:
CJ90E
Manufacturer:
Sta-Rite Pumps
Manufacturer Part No:
CJ90E
|
|
|
