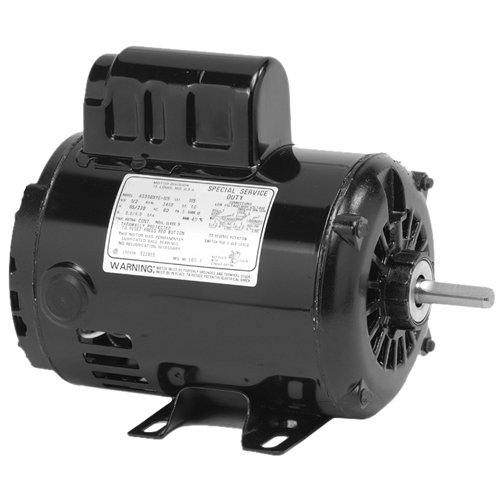

D1CPM1PH U.S. Motors Special Application Motor (1 HP, 3600 RPM, 115/230 Voltage)
|
Applications |
|
For belt drive air compressor duty high breakdown torque. |
|
|
|
Features |
|
Rigid Welded Base |
|
|
Continuous Duty |
|
|
Manual Reset Thermal Overload Protector |
|
|
ODP Enclosure |
|
|
Class B Insulation |
|
|
40C Ambient |
|
|
Ball Bearings |
|
|
Ball Bearings |
|
|
Rotation - CCW Facing Shaft End, Non-Reversible |
|
|
Capacitor Start, Capacitor Run |
|
| Specifications | | Brand | U.S. Motors | | Catalog Number | D1CPM1PH | | Type | Special Application Air Compressor Motors | | Catalog Number | D1CPM1PH | | HP | 1 | | RPM | 3600 | | Voltage | 115/230 | | Phase | Single | | Frame | 56 | | Enclosure | ODP | | SF | 1.25 | | "C" Dim.
(inches) | 11.4 | | Ship Wt. (lbs) | 29 | | Full Load Amps | 9.3/4.3 | | Symbol | DS-3FMP | | Notes | See Support Documents |
Item Number:
D1CPM1PH
Manufacturer:
U.S. Motors
Manufacturer Part No:
T063CNH2146012B
|
|
|
