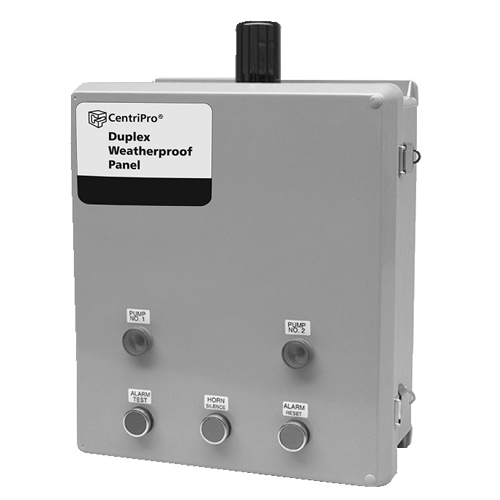

D31620 Goulds Pumps Duplex NEMA 4X Weatherproof Panel (16 - 20 AMP Range, Three Phase, NEMA 4X Enclosure)
|
Images may be generic. Please inquire
|
Your Price:
Contact Us For a Quote
|
|
Applications |
|
Superior quality duplex liquid-level controller, automatically controls alternation for two pump operation. High-level alarm warning designed for a variety of sump, effluent, sewage and water transfer applications. |
|
|
|
Features |
|
NEMA 4X, 30 watt, flashing red light and alarm horn 95db. |
|
|
NEMA 4X, fiberglass enclosure with gasketed, hinged door and stainless steel hardware. |
|
|
Entire unit is UL and CUL listed. |
|
|
Single Phase Field adjustable for 115, 208 or 230V, 60 Hz. 2 pump circuit breakers. |
|
|
Three Phase Field adjustable for 208/230 /460/575V, 60 Hz. |
|
|
115V control circuit transformer. |
|
|
2 adjustable motor overload protectors. |
|
|
Heaters not required. |
|
|
Provides fully automatic operation for two pumps. |
|
|
Solid state pump alternator circuit displays float status for ease of installation and trouble shooting. |
|
|
Accepts single or dual power feed. |
|
| Specifications | | Brand | Goulds Pumps | | Catalog Number | D31620 | | Type | Duplex NEMA 4X Weatherproof Panels | | Series | SES | | AMP / HP Range | 16 - 20 | | Phase | Three | | Application | Indoor / Outdoor | | Enclosure Type | NEMA 4X | | Enclosure Material | Fiberglass | | Hardware Material | Stainless Steel | | Indicator Lights | Alarm/Run | | Voltage | 208/230 /460/575V | | Notes | See Support Documents |
Item Number:
D31620
Manufacturer:
Goulds Pumps
Manufacturer Part No:
D31620
|
|
|
