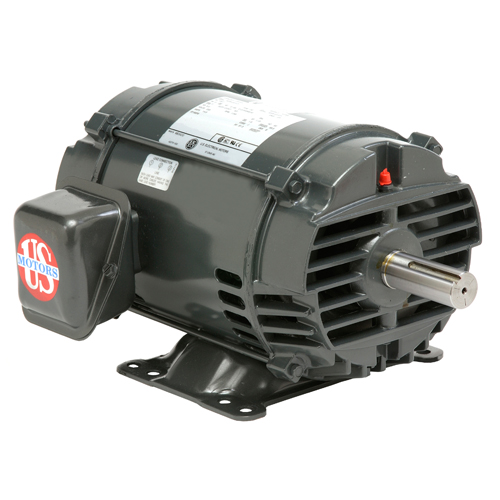

DH75S2GF U.S. Motors Dry Hydraulic Elevator Motors (75 HP, 575 Voltage, Three Phase, 1800 RPM)
| Applications |
| Suitable for use on elevators where dry hydraulic motors are required, usually five stories or less. |
| |
| Features |
| NEMA and CSA Certified |
| 1800 RPM |
| NEMA Design B |
| 80 Starts Per Hour |
| F1 Assembly |
| 60 Hertz |
| Class F Insulation |
| 1.00 Service Factor |
| Intermittent Duty Rated For Operation in a 40C Ambient Temperature |
| Ball Bearing Design |
|
Tech Specs
|
|
Brand
|
U.S. Motors/Emerson
|
|
U.S. Motors Model Number
|
DH75S2GF
|
|
HP
|
75 |
|
RPM
|
1800
|
|
Voltage
|
575
|
|
Phase
|
Three
|
|
Frame
|
364T
|
|
Full Load Amps
|
70
|
|
Type
|
Dry Hydraulic Elevator Motor
|
|
SF
|
1
|
|
C Dim. (inches)
|
28.7
|
|
Notes
|
See Product Literature
|
|
Apx. Wt. (lbs.)
|
580
|
Item Number:
DH75S2GF
Manufacturer:
U.S. Motors
Manufacturer Part No:
DH75S2GF
|
|
|
