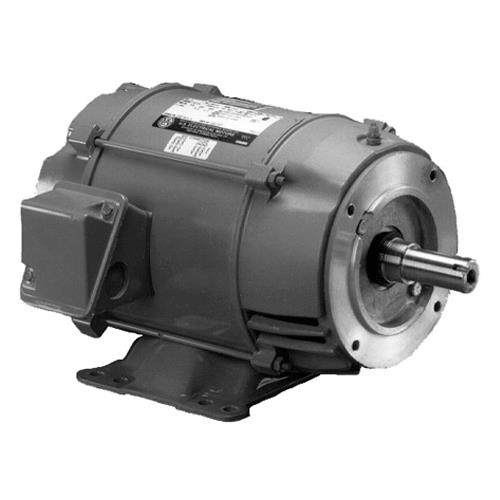

DJ40E1GP U.S. Motors Close Coupled Pump Motor (40 HP, 575 V, 3 Phase)
| Applications |
| For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft. Used where dirt and moisture are minimal. |
| |
| Features |
| Class F Insulation, Class B Rise At Service Factor |
Regreasable Bearings 180 Frame & Up, Lifting Provisions 210 Frame & Up |
| Rolled Steel Frame 140-320 |
Double Shielded Bearings |
| Aluminum End Shields 140-250, Cast Iron End Shields 280-320 |
40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power |
| Oversized Ball Bearings w/Locked Shaft End Construction |
JM Shaft For Mechanical Seal |
| Premasked Mylar Nameplate (with CE Mark) |
JM Shaft on 210 Frame and Smaller; JP Shaft on 250 and 280 Frame |
| F1 Assembly Position |
Conversion Kits: Page 263 |
|
|
|
|
|
|
|
|
|
|
|
Tech Specs
|
|
Brand
|
U.S. Motors/Emerson
|
|
U.S. Motors Model Number
|
DJ40E1GP
|
|
HP
|
40
|
|
RPM
|
3600
|
|
Voltage
|
575
|
|
Phase
|
Three
|
|
Frame
|
286JP
|
|
Full LoadEff.
|
91.7
|
|
Full LoadAmps
|
36
|
|
SF
|
1.15
|
|
C Dim. (inches)
|
28.6
|
|
Type
|
Close Coupled Pump Motor
|
|
Shaft
|
JP
|
|
Mount
|
Footed
|
|
Apx. Wt. (lbs.)
|
320
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Item Number:
DJ40E1GP
Manufacturer:
U.S. Motors
Manufacturer Part No:
DU67
|
|
|
