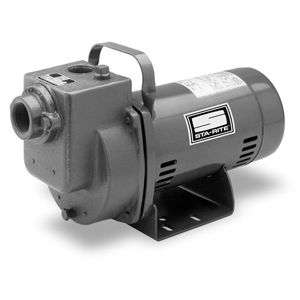

DPC Sta-Rite Self Priming Centrifugal Pump (1/2 HP, 115 Volt, 1-1/4" Suction)
| Applications |
| The DPC Series self-priming centrifugal pump is a rugged cast iron pump capable of priming up to 20' vertically and will handle solids up to 0.225" diameter. The unit is equipped with a 1/2 HP 115-volt motor and features 1-1/4" suction and discharge. |
| |
| Features |
| Motor: 1/2 HP, 3450 RPM, 115-volt split phase, 60 Hz. Built-in thermal overload protection with automatic reset. |
|
| Mechanical Seal: Buna-N elastomers carbon and ceramic sealing faces, stainless steel metal part. |
|
| Heavy-Duty Ball Bearings: Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation. |
|
| Built-in Convenience: Comes complete with built-in overload protection with automatic reset and a built-in check valve. |
|
| Power Cord: 10', 115 volt. |
|
|
Specifications
|
|
Brand
|
Sta-Rite
|
|
Catalog Number
|
DPC
|
|
Type
|
Self-priming centrifugal pump
|
|
Series
|
DPC Series
|
|
Model
|
DPC
|
|
HP
|
1/2
|
|
Volt
|
115
|
|
Phase/Cycle
|
1/60
|
|
Volute
|
Cast iron
|
|
Impeller
|
Polycarbonate
|
|
Diffuser
|
Thermoset
|
|
Shaft
|
One-piece threaded stainless steel
|
|
Base
|
Steel 12 gauge
|
|
Max Temp
|
130 F
|
|
RPM
|
3450
|
|
Power Cord
|
10'
|
|
Suction
|
1-1/4"
|
|
Discharge
|
1-1/4"
|
|
Max GPM
|
Approx. 42
|
|
Max Total Head Feet
|
63
|
|
Notes
|
See Support Documents
|
Item Number:
DPC
Manufacturer:
Sta-Rite Pumps
Manufacturer Part No:
DPC
|
|
|
