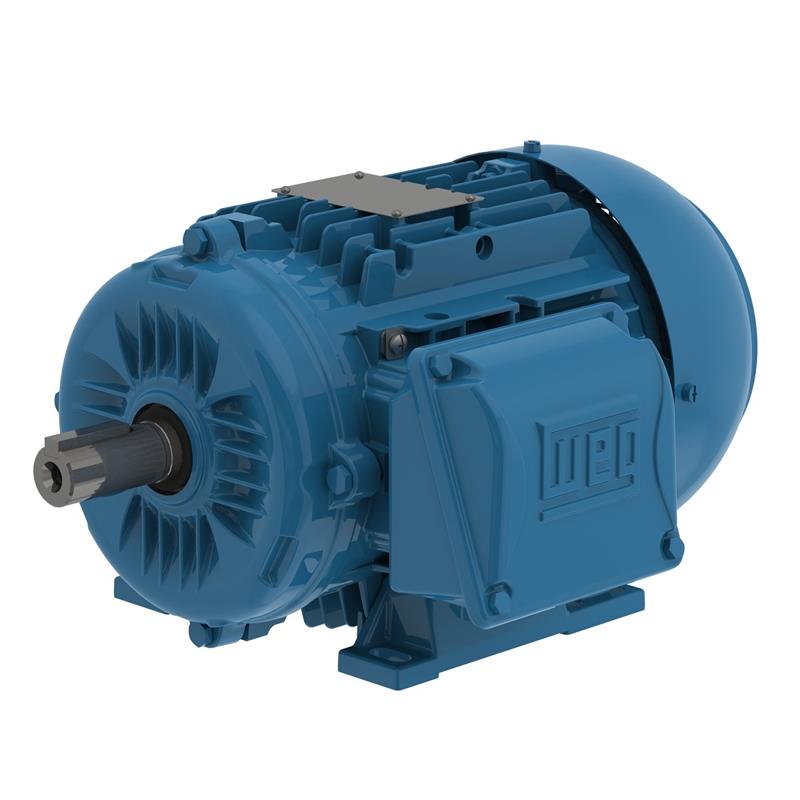

E04536EP3Y225SMF3-W2 WEG Motor (60 HP, 3000 RPM, 3 Phase, 225S/M Frame, TEFC Enclosure, 380-415/660-690//440-460 Voltage)
|
Images may be generic. Please inquire
|
MSRP:
$6,767.00
Your Price:
Call for Pricing
|
|
Applications |
|
This line is designed and built according to European IEC34 and IEC79 standards. |
|
|
|
Features |
|
60 Hz (1.15 service factor) and 50 Hz (1.0 service factor) |
|
|
Class F insulation (Impregnation Resin and Magnet wire are class H) |
|
|
F2 mounted as standard (F1 convertible) |
|
|
Stainless Steel Nameplate - Laser etched with High contrast background |
|
|
Regreasable ball bearings (Frames 160 and up) |
|
|
Gasketed conduit box |
|
|
Suitable for WYE/Delta Start (W and Y voltage code motors) |
|
| Specifications | | Brand | WEG | | Catalog Number | E04536EP3Y225SMF3-W2 | | Type | IEC Tru-Metric Motor | | HP | 60 | | KW | 45 | | RPM | 3000 | | Phase | 3 | | C Dimension | 33.701 | | Service Factor | 1 | | Frame | 225S/M | | Enclosure | TEFC | | Full Load Amps | 75.8 | | Mount | Foot Mount | | Voltage | 380-415/660-690//440-460 | | Warranty | 1 Year |
Item Number:
E04536EP3Y225SMF3-W2
Manufacturer:
WEG
Manufacturer Part No:
E04536EP3Y225SMF3-W2
|
|
|
