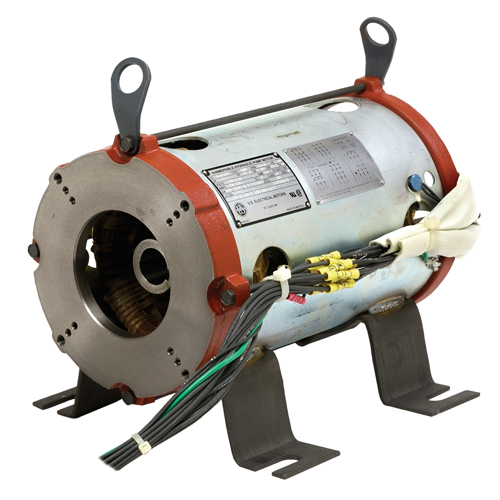

E3S2A3 U.S. Motors Submersible Elevator Motors (3 HP, 208-230/460 Voltage, 3 Phase, 1800 RPM)
| Applications |
| For use in low rise buildings using Allweiler submersible pumps. |
| |
| Features |
| Single Ball Bearing Design to Fit Allweiler SFDR/A SUB20/40/80 |
| Intermittent Duty Rated For 80 Starts Per Hour |
| Oil Temperature of 60C (140F) / Viscosity Up To 70cSt |
| Class F Insulation |
| 1.0 Service Factor |
| Thermal Protection Fitted (PTO Thermostats) |
| CSA Certified and UL Component Recognized |
| 10 HP Wye-Delta Start, Others Across-The-Line Start |
| Double Vacuum Pressure Impregnation |
| Flying Leads : Length 49" |
| Two Nameplates |
| Permanent Capacitors For Single Phase Motors Sold Separately* |
|
Tech Specs
|
|
Brand
|
U.S. Motors/Emerson
|
|
U.S. Motors Model Number
|
E3S2A3
|
|
HP
|
3
|
|
RPM
|
1800
|
|
Voltage
|
208-230/460
|
|
Phase
|
3
|
|
Frame
|
90
|
|
Amps
|
9.3-9.6/4.8
|
|
C Dim. (inches)
|
234
|
|
Type
|
Submersible Elevator Motor
|
|
Flange
|
L19
|
|
Shaft
|
19mm
|
|
Capacitor Requirement
|
-
|
|
Capacitor Catalog Number
|
-
|
|
Apx. Wt. (lbs.)
|
37
|
Item Number:
E3S2A3
Manufacturer:
U.S. Motors
Manufacturer Part No:
BHFH548B3NS
|
|
|
