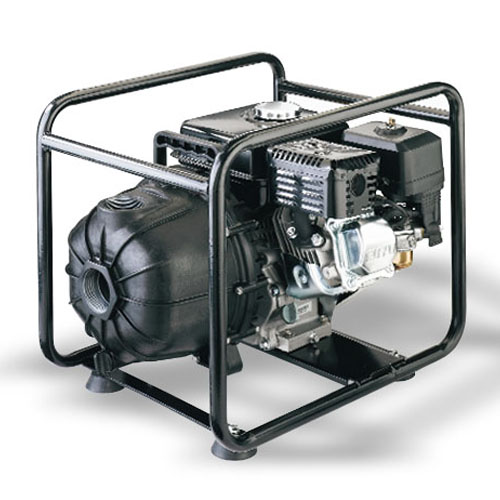

EDP55RV Sta-Rite Pumps Engine Driven Pump with Rollcage (6-1/2 HP, 2" Suction, 2" Discharge)
| Applications |
| Lightweight, corrosion-resistant, engineered composite pump construction make this engine-driven pump extremely versatile for applications where electrical power is not available. Powered by a powerful 6-1/2 HP, PowerPro 4 Cycle gasoline engine, rated for continuous-duty, equipped with professional grade features like an automatic low-oil cut, manual throttle, choke and shut off controls. Securley mounted within a rugged steel framed rollcage, reinforced with steel cross-members, coated for corrosion resistance, equipped with noise-dampening, non-slip rubbert feet. Suction lift capability of 25 feet. Applications include: Water transfer and supply, sprinkler turk irrigation, dewatering, fire protection and agriculture, light commerical and marine. |
| |
| Features |
| Rugged Liught Weight Design |
|
| Corrosion-Resistant Composite Pump Construction |
|
| Chemical-Resistant Viton Seals, O-Rings with Stainless Steel Fasteners |
|
| Built-in Check Valve |
|
|
Specifications
|
|
Brand
|
Sta-Rite Pumps
|
|
Catalog Number
|
EDP55RV
|
|
Type
|
Engine Driven Pump
|
|
Series
|
Pro-Source Pumper Series
|
|
HP
|
6-1/2
|
|
Description
|
Engine-Driven Pump w/Rollcage
|
|
Suction
|
2"
|
|
Discharge
|
2"
|
|
Approx. Weight
|
46 lbs
|
|
Body
|
Reinforced corrosion resistant thermoplastic
|
|
Impeller
|
Polymer
|
|
Diffuser
|
Reinforced corrosion resistant thermoplast
|
|
Seals
|
Viton mechanical
|
|
O-rings
|
Viton
|
|
Check Valve
|
Viton
|
|
Rollcage
|
Coated steel frame with cross-member and stay-in-place (no-slip) rubber feet
|
|
Dimensions
|
21"H x 17"D x 21"L
|
|
Fasteners
|
300 grade stainless steel
|
|
Notes
|
See support documents
|
Item Number:
EDP55RV
Manufacturer:
Sta-Rite Pumps
Manufacturer Part No:
EDP55RV
|
|
|
