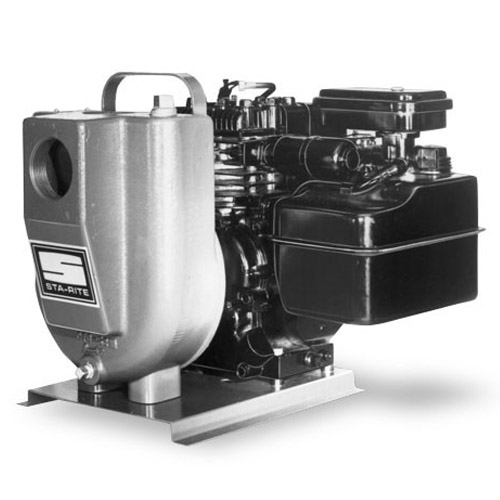

EEDDH-29R-01 Sta-Rite Self Priming Engine Driven Pump (3 HP, Gasoline-powered, 3 Quarts, 2" Suction)
| Applications |
| These Sta-Rite engine-driven centrifugal pumps can be used where electrical power is not available. Powerful 4-cycle gasoline engines get the job done faster and more efficiently. |
| |
| Features |
| Close-coupled EDDH has pump and engine close-coupled on all-steel base16" long, 14" wide and 13-1/8" high. EDDH features 5/8" diameter, ductile iron threaded shaft extension. |
|
| Frame-mounted EEDDH features pump and engine frame-mounted on all-steel base18 11/16" long, 14" wide and 13-1/8" high. Stub shaft allows easy replacement with other gasolinepowered engines. EEDDH has 3/4" diameter keyed ductile iron shaft extension. |
|
| Order Catalog No. EEDD for pump end only, supplied without engine, to be used with 5/8" or 3/4" shaft in gasolineengine- driven applications. Pump is identical in design to stub-shaft EEDDH. |
|
| * Pump Curves and Dimensions are in the Support Documents Below. |
|
|
Specifications
|
|
Brand
|
Sta-Rite
|
|
Catalog Number
|
EEDDH
|
|
Type
|
Engine-driven self-priming pumps
|
|
Series
|
EDD/EEDD Series
|
|
Model
|
EEDDH
|
|
HP
|
3
|
|
Description
|
Gasoline-powered pump
|
|
Fuel Tank Size
|
3 Quarts
|
|
Suction
|
2"
|
|
Discharge
|
2"
|
|
Approx. Weight
|
72
|
|
Body
|
Close-grained cast iron
|
|
Impeller
|
Cast iron
|
|
Diffuser
|
Cast iron
|
|
Diffuser Ring
|
Buna-N
|
|
Notes
|
See support documents
|
Item Number:
EEDDH-29R-01
Manufacturer:
Sta-Rite Pumps
Manufacturer Part No:
EEDDH
|
|
|
