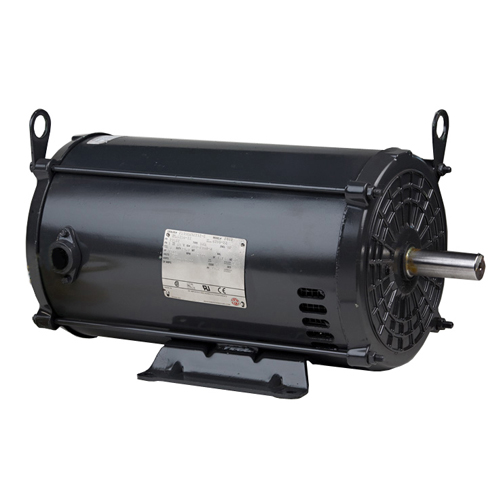

FD3CA1K14 U.S. Motors Aeration Fan and Crop Dryer Motors (3 HP, 230 Voltage, Single Phase Phase, 3600 RPM)
| Applications |
| For air over applications or fans mounted directly on the motor shaft. Specifically designed for use on vane axial crop dryers and aeration fans. |
| |
| Features |
| Totally Enclosed Air Over |
| Class B Insulation On 56 Frame |
| Class F Insulation On 140 Frame |
| Keyed Shaft Drilled On Center 1" Deep & Tapped 1/4" UNC |
| 56Z Frame Motors Have 5/8" Dia. X 2-1/4" Long Shaft |
| F1 Assembly Position |
| Open Dripproof Air-Over |
| Thermostat Protected (Overheating Protection) Requires Leads to be Connected to Control Circuit of Motor Controller. |
| Non-Standard 1-1/8" Diameter x 3-1/4" Long Keyed Shaft Is Drilled On Center 1" Deep & Tapped 1/4-20 UNC |
| Rodent Screens, Extra Long Leads, Class F Insulation |
|
Tech Specs
|
|
Brand
|
U.S. Motors/Emerson
|
|
U.S. Motors Model Number
|
FD3CA1K14
|
|
HP
|
3
|
|
RPM
|
3600
|
|
Voltage
|
230
|
|
Phase
|
Single Phase
|
|
Frame
|
145TZ
|
|
SF
|
1
|
|
C Dim (inches)
|
13.6
|
|
Full Load Eff.
|
78.5
|
|
Full Load Amps
|
14.9
|
|
Type
|
Capacitor Start Agriculture
|
|
Notes
|
See Product Literature
|
|
Apx. Wt. (lbs.)
|
42
|
Item Number:
FD3CA1K14
Manufacturer:
U.S. Motors
Manufacturer Part No:
T063DAT1610012B
|
|
|
