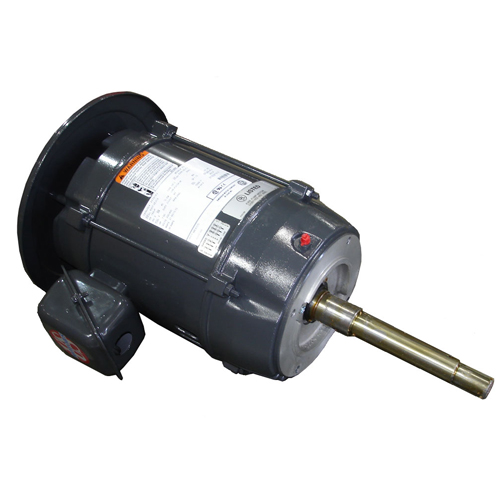

FF10E1DV U.S. Motors Vertical Fire Pump Motor (10 HP, 208-230/460 Voltage, Three Phase, 3600 RPM)
|
Applications |
|
For fire pump applications per NFPA 20 where contaminants are minimal. |
|
|
|
Features |
|
Class F Insulation, Class B Rise At Service Factor | Double Shielded Bearings
|
|
Rolled Steel Frame 180-320, Cast Iron Frame On 360 | Lifting Provisions 210 Frame & Larger
|
|
Aluminum End Shields 180-250, Cast Iron End Shields 280-360 | Suitable For Wye-Delta Start 250 Frame & Larger
|
|
Premasked Mylar Nameplate 180-320, Stainless Steel On 360 | Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
|
|
40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power | 575 Volt Ratings Comply With NRCan Standards
|
|
Regreasable Bearings 180 Frame & Larger | Oversized Connection Diagram, "CE" Mark On Nameplate
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Tech Specs | | Brand | U.S. Motors/Emerson | | U.S. Motors Model Number | FF10E1DV | | HP | 10 | | RPM | 3600 | | Voltage | 208-230/460 | | Phase | Three Phase | | Frame | 213JP | | Full Load Eff. | 88.5 | | Full Load Amps | 27.5-25.3/12.6 | | SF | 1.15 | | C Dim. (inches) | 22.5 | | Shaft | JP | | Mount | Footless | | Notes | See Product Literature | | Apx. Wt. (lbs.) | 110 | | | | | | | | | | | | | | | |
Item Number:
FF10E1DV
Manufacturer:
U.S. Motors
Manufacturer Part No:
FB75
|
|
|
