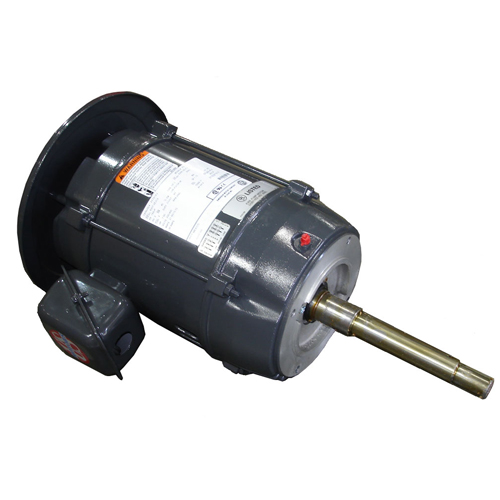

FF50E1GV U.S. Motors Vertical Fire Pump Motor (50 HP, 575 Voltage, Three Phase, 3600 RPM)
| Applications |
| For fire pump applications per NFPA 20 where contaminants are minimal. |
| |
| Features |
| Class F Insulation, Class B Rise At Service Factor |
Double Shielded Bearings |
| Rolled Steel Frame 180-320, Cast Iron Frame On 360 |
Lifting Provisions 210 Frame & Larger |
| Aluminum End Shields 180-250, Cast Iron End Shields 280-360 |
Suitable For Wye-Delta Start 250 Frame & Larger |
| Premasked Mylar Nameplate 180-320, Stainless Steel On 360 |
Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage |
| 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power |
575 Volt Ratings Comply With NRCan Standards |
| Regreasable Bearings 180 Frame & Larger |
Oversized Connection Diagram, "CE" Mark On Nameplate |
|
|
|
|
|
|
|
|
|
|
|
Tech Specs
|
|
Brand
|
U.S. Motors/Emerson
|
|
U.S. Motors Model Number
|
FF50E1GV
|
|
HP
|
50
|
|
RPM
|
3600
|
|
Voltage
|
575
|
|
Phase
|
Three Phase
|
|
Frame
|
324JP
|
|
Full Load Eff.
|
92.4
|
|
Full Load Amps
|
46
|
|
SF
|
1.15
|
|
C Dim. (inches)
|
38.8
|
|
Shaft
|
JP
|
|
Mount
|
Footless
|
|
Notes
|
See Product Literature
|
|
Apx. Wt. (lbs.)
|
400
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Item Number:
FF50E1GV
Manufacturer:
U.S. Motors
Manufacturer Part No:
AD31
|
|
|
