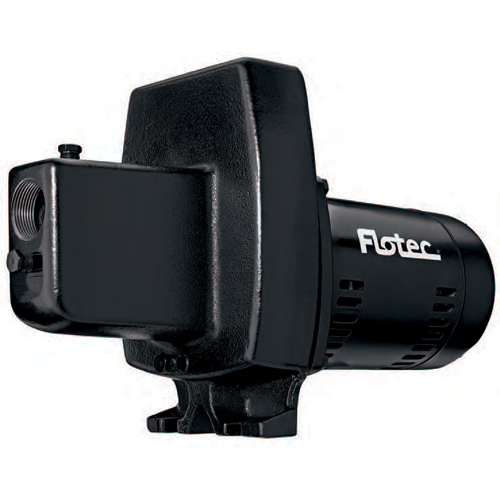

FP4122 Flotec Cast Iron Shallow Well Jet Pump (3/4 HP, 115 / 230 Voltage, 1-1/4" NPT Suction, 1" NPT Discharge)
| Applications |
| Cast iron shallow well jet pumps provide superior performance and high capacities with more pressure for shallow wells 25' or less. All units feature dual voltage motor. |
| |
| Features |
| Superior performance at depths to water of 25' or less |
|
| Rugged, heavy-duty cast iron pump housing |
|
| Ready-to-install 230 volt motor - see manual for 115 volt conversion |
|
| 1-1/4" NPT suction and 1" NPT discharge pipe sizes |
|
| Rugged Pump Housing Durable cast iron construction |
|
| Superior Performance At depths to water of 25' or less |
|
| Self-Priming After Pump Housing Is Initially Filled Check valve or foot valve required, sold separately |
|
| Factory-installed 30/50 preset pressure switch, detailed owner's manual |
|
|
Specifications
|
|
Brand
|
Flotec
|
|
Catalog Number
|
FP4122
|
|
Type
|
Cast Iron Shallow Well Jet Pump
|
|
HP
|
3/4
|
|
Max Pressure Shutoff
|
70 PSI
|
|
Voltage
|
115 / 230
|
|
Pressure Switch ON
|
30
|
|
Pressure Switch OFF
|
50
|
|
Suction
|
1-1/4" NPT
|
|
Discharge
|
1" NPT
|
|
Warranty
|
1-Year
|
Item Number:
FP4122-08
Manufacturer:
Flotec
Manufacturer Part No:
FP4122
|
|
|
