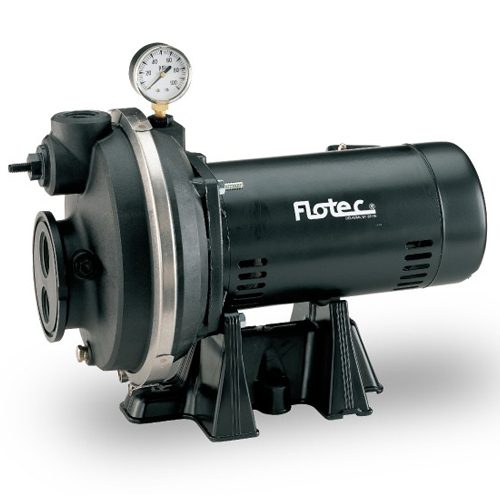

FP4312 Flotec Thermoplastic Convertible Jet Pump (1/2 HP, 230/115 Volts, 1-1/4" NPT Suction, 1" NPT Discharge)
| Applications |
| Corrosion resistant convertible jet pumps are constructed of rugged fiberglass-reinforced thermoplastic, and assure years of dependable service |
| |
| Features |
| For Deep or Shallow Wells |
|
| Superior Performance At depths to water of 110' or less |
|
| Fiberglass-Reinforced Thermoplastic Pump Housing For the highest corrosion resistance |
|
| Self-Priming After Pump Housing Is Initially Filled Foot valve included with Jet Kit, sold separately |
|
| Prewired Pressure Switch Preset for 30/50 PSI operation |
|
| Built-in Pressure Regulator |
|
| Includes: Factory-installed 30 PSI gauge, preset pressure switch, detailed owner's manual |
|
| WARRANTY:1 year limited warranty |
|
| MAXIMUM WATER TEMPERATURE: 140 F |
|
| RECOMMENDED BREAKER: 15 amp for 230v / 20 amp for 115v |
|
| AMP DRAW: 7.4 amps on 230v / 14.8 amps on 115v |
|
|
Specifications
|
|
Brand
|
Flotec
|
|
Catalog Number
|
FP4312
|
|
Type
|
Convertible Jet Pumps
|
|
HP
|
1/2
|
|
Volts
|
230/115
|
|
Pressure Switch ON
|
30
|
|
Pressure Switch OFF
|
50
|
|
Jet Kit (Not included)
|
FP4800
|
|
Body Construction
|
Thermoplastic
|
|
Suction
|
1-1/4" NPT
|
|
Discharge
|
1" NPT
|
|
Warranty
|
1 Year
|
Item Number:
FP4312-08
Manufacturer:
Flotec
Manufacturer Part No:
FP4312
|
|
|
