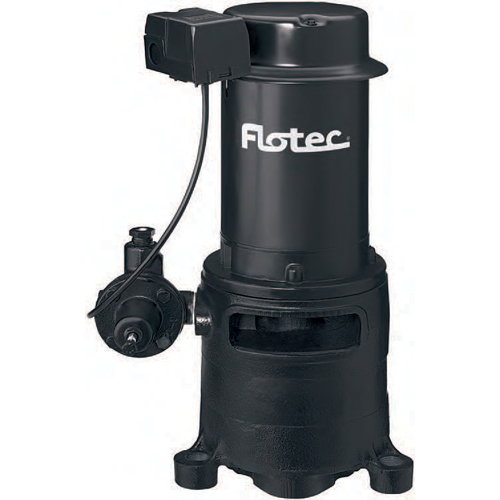

FP4432-01 Flotec Vertical Deep Well Jet Pump (1 HP, 12 GPM Max, 230V / 115V, 60 Hz, 1-1/4" Suction, 1" Discharge)
| Applications |
| Vertical deep well jet pump can be used in 4" diameter or larger wells up to 260', or in 2" diameter wells up to 180'. |
| |
| Features |
| Superior performance at depths to water of 50' or more |
|
| Rugged, heavy-duty cast iron pump housing |
|
| Ready-to-install 230 volt motor - see manual for 115 volt conversion |
|
| High Capacity Up to 12 gallons per minute at 50 PSI |
|
| Prewired Factory-Set 40/60 Pressure Switch |
|
|
Specifications
|
|
Brand
|
Flotec
|
|
Catalog Number
|
FP4432-01
|
|
Type
|
Vertical Deep Well Jet Pump
|
|
HP
|
1
|
|
Max Capacity
|
12 GPM
|
|
Flow ar 50' lift and 40 PSI
|
11 GPM
|
|
AMP Draw
|
1" NPT
|
|
Voltage
|
230V / 115V, 60 Hz
|
|
Recommended Breaker
|
15 amp for 230v / 20 amp for 115v
|
|
Suction
|
1-1/4"
|
|
Discharge
|
1"
|
|
Construction
|
Durable Cast Iron
|
|
Performance
|
At depths to water of 260'
|
|
Jet Kit
|
Sold Separately
|
|
Warranty
|
1 year
|
Item Number:
FP4432-01
Manufacturer:
Flotec
Manufacturer Part No:
FP4432-01
|
|
|
