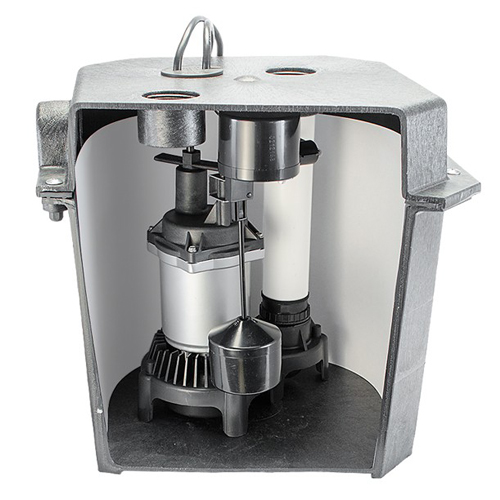

FPZS33LTS Flotec Sink Pump System with Sump Pump (1/3 HP, 2880 GPH, 3/16" Solid Handling, 1-1/2" FNPT Outlet, 6 Gallon Basin)
| Applications |
| The Self-Contained Sink Pump System includes a check valve, 1-1/2" x 6-3/4" discharge pipe, basin, 1/3 HP sump pump, and 8' grounded power cord. |
| |
| Features |
| Under-Sink Basin System - Ideal for pumping washing machine, wet bar and air conditioning drainage without an in-ground basin |
|
| Heavy-Duty - 6-gallon structural foam drainage tank |
|
| Easy Installation - Eliminates need for expensive plumbing renovation |
|
| 1 year limited warranty |
|
| Includes: Check valve, 1-1/2" x 6-3/4" discharge pipe, basin, 1/3 HP sump pump, 8' grounded power cord |
|
| All pipes taps in the basin (inlet, discharge, vent) are 1.5" NPT female. |
|
|
Specifications
|
|
Brand
|
Flotec
|
|
Catalog Number
|
FPZS33LTS
|
|
Type
|
Self-Contained Sink Pump System
|
|
Model Number
|
FPZS33LTS
|
|
HP
|
1/3
|
|
GPH
|
2880
|
|
Solid Handling
|
3/16"
|
|
Float Switch Off
|
3"
|
|
Float Switch On
|
7.5"
|
|
Check Valve
|
Included
|
|
Pump Housing Material
|
Thermoplastic
|
|
Outlet
|
1-1/2" FNPT
|
|
Inlet
|
1-1/2" FNPT
|
|
Switch Type
|
Float
|
|
Basin Capacity
|
6 Gallon
|
|
Voltage
|
115
|
|
Float Switch
|
Vertical
|
|
Basin Height
|
14-13/64"
|
|
Cord Length
|
8'
|
|
Basin Diameter
|
14-13/64"
|
|
Width
|
15-13/16"
|
|
Warranty
|
1-Year
|
|
Vent Size
|
1-1/2"
|
|
Phase
|
Single
|
|
Shaft Seal
|
Buna N
|
|
Basin Material
|
Structural Foam
|
|
Approximate weight
|
18 lbs
|
|
Flow Rate @ 5 Ft. of Head
|
51 GPM
|
|
Flow Rate @ 10 Ft. of Head
|
40 GPM
|
|
Flow Rate @ 15 Ft. of Head
|
28 GPM
|
|
Flow Rate @ 20 Ft. of Head
|
11 GPM
|
|
Max Head
|
22 Ft.
|
|
Additional Specs
|
See Support Documents
|
Item Number:
FPZS33LTS
Manufacturer:
Flotec
Manufacturer Part No:
FPZS33LTS
|
|
|
