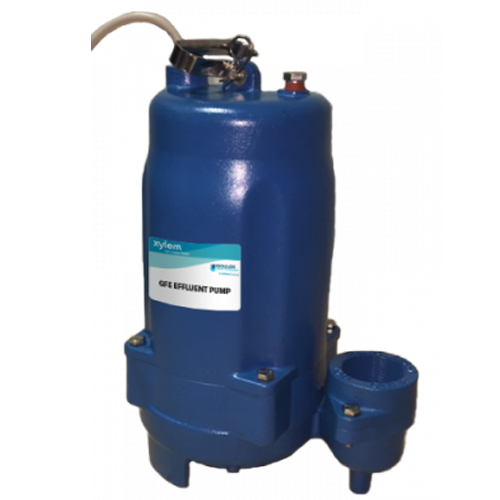

GFE0511 Goulds Pumps Cast Iron Effluent Pumps (1/2 HP, 115 Volts, Vertical Float)
|
Images may be generic. Please inquire
|
Your Price:
Contact Us For a Quote
|
| Applications |
| Specifically designed for the following uses: Homes, farms, trailer courts, motels, schools, hospitals, small business, effluent systems. |
| |
| Features |
| Motor is fully submerged in high-grade turbine oil for lubrication and efficient heat transfer |
|
| Class B insulation |
|
| Impeller: Cast iron, with dual vanes. Balanced for smooth operation. 3/4 HP, high head is glass reinforced thermoplastic |
|
| Casing: Cast iron volute type for maximum efficiency. 1.5" or 2" NPT discharge (with included adapter) |
|
| Mechanical Seal: Silicon Carbide vs. Silicon Carbide sealing faces. Stainless steel metal parts, BUNA-N elastomers |
|
| Shaft: Corrosion-resistant, stainless steel. Threaded design |
|
| Fasteners: 300 series stainless steel |
|
| Capable of running dry without damage to components |
|
| Designed for continuous operation when fully submerged |
|
|
Specifications
|
|
Brand
|
Goulds Pumps
|
|
Catalog Number
|
GFE0511
|
|
Type
|
Cast Iron Effluent Pumps
|
|
Series
|
GFE Series
|
|
HP
|
1/2
|
|
Volts
|
115
|
|
Max. Amps
|
14.5
|
|
Locked Rotor Amps
|
46
|
|
Min. Circuit Breaker
|
15A
|
|
Phase
|
1
|
|
RPM
|
3400
|
|
Impeller Diameter (in.)
|
3.56
|
|
Float Switch Style
|
Vertical
|
|
Cord Length (ft.)
|
20'
|
|
Power Cable Size
|
14/3
|
|
Discharge Connection (in.)
|
1.5" or 2" NPT
|
|
Discharge Adapter
|
Included
|
|
Max. Solids Size
|
3/4"
|
|
Shipping Weight (lbs.)
|
64.5
|
|
Height
|
16-1/2"
|
|
Width
|
11-1/4"
|
|
Temperature
|
104 F. CONT. / 140 F. INTER.
|
|
Notes
|
See Support Documents
|
Item Number:
GFE0511
Manufacturer:
Goulds Pumps
Manufacturer Part No:
GFE0511
|
|
|
