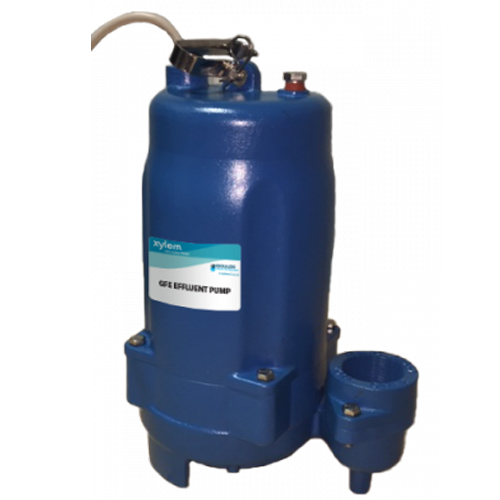

GFE1012 Goulds Pumps Cast Iron Effluent Pumps (1 HP, 230 Volts, Vertical Float)
|
Images may be generic. Please inquire
|
Your Price:
Contact Us For a Quote
|
|
Applications |
|
Specifically designed for the following uses: Homes, farms, trailer courts, motels, schools, hospitals, small business, effluent systems. |
|
|
|
Features |
|
Motor is fully submerged in high-grade turbine oil for lubrication and efficient heat transfer |
|
|
Class B insulation |
|
|
Impeller: Cast iron, with dual vanes. Balanced for smooth operation. 3/4 HP, high head is glass reinforced thermoplastic |
|
|
Casing: Cast iron volute type for maximum efficiency. 1.5" or 2" NPT discharge (with included adapter) |
|
|
Mechanical Seal: Silicon Carbide vs. Silicon Carbide sealing faces. Stainless steel metal parts, BUNA-N elastomers |
|
|
Shaft: Corrosion-resistant, stainless steel. Threaded design |
|
|
Fasteners: 300 series stainless steel |
|
|
Capable of running dry without damage to components |
|
|
Designed for continuous operation when fully submerged |
|
| Specifications | | Brand | Goulds Pumps | | Catalog Number | GFE1012 | | Type | Cast Iron Effluent Pumps | | Series | GFE Series | | HP | 1 | | Volts | 230 | | Max. Amps | 12.5 | | Locked Rotor Amps | 36.2 | | Min. Circuit Breaker | 15A | | Phase | 1 | | RPM | 3400 | | Impeller Diameter (in.) | 4.67 | | Float Switch Style | Vertical | | Cord Length (ft.) | 20' | | Power Cable Size | 14/3 | | Discharge Connection (in.) | 1.5" or 2" NPT | | Discharge Adapter | Included | | Max. Solids Size | 3/4" | | Shipping Weight (lbs.) | 65 | | Height | 16-1/2" | | Width | 11-1/4" | | Temperature | 104 F. CONT. / 140 F. INTER. | | Notes | See Support Documents |
Item Number:
GFE1012
Manufacturer:
Goulds Pumps
Manufacturer Part No:
GFE1012
|
|
|
