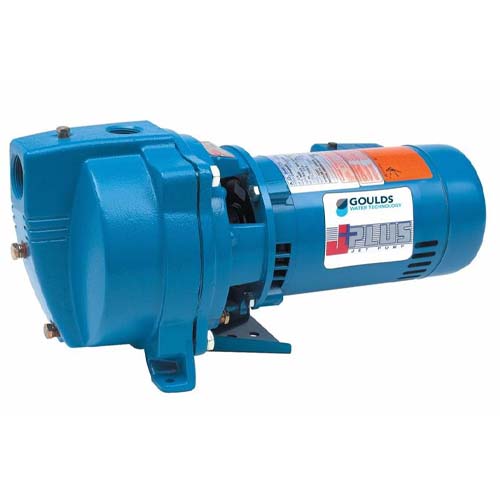

Goulds Pumps J10 Convertible Jet Pump (1 HP, 115/230 Volts, 1 Phase)

Goulds J+ Convertible Jet Pump

This pump may be used on shallow or deep well applications using appropriate Goulds fittings.  It is engineered with a back pullout design for easy service without disturbing piping.

Includes:

• Pump and motor
• Pressure gauge and bushing
• Pressure switch (Part# AS4)
• Tubing and fittings

Please note that if using this pump for NEW INSTALLATIONS in deep well applications, a deepwell jet assembly package in either twin pipe or packer style must be purchased separately (see brochure in Manuals tab for choosing the approprate jet assembly).  A JDW fitting package or an AV22KIT is required to make the pressure switch connection.

Features

• Two compartment motor for access to wiring and replaceable components
• Nozzle clean out plug in shallow well adapter
• Corrosion resistant, plastic tubing and fittings are easily removed for cleaning
• Premium O-ring design fittings need only be hand tight to seal
• Corrosion and abrasion resistant glass filled noryl impeller, F.D.A. compliant
• Bolt down Lexan diffuser has stainless wear ring for extended performance in abrasive conditions
• Powered for continuous operation
• Rated  within the motor manufacturer’s recommended working limits
• Can be operated continuously without damage
• Corrosion resistant electro-coat paint is baked on
• Diaphragm retains water in the casing to ensure the mechanical seal can never run dry
• Excellent air handling ability - after initial priming the pump has the ability to re-prime itself
• Built-in overload with automatic reset
• Stainless steel shaft
• Clockwise rotation when viewed from motor end
• Pressure switch AS4 preset at 30-50 psi

Applications

• Homes
• Farms
• Cottages
• Booster service
