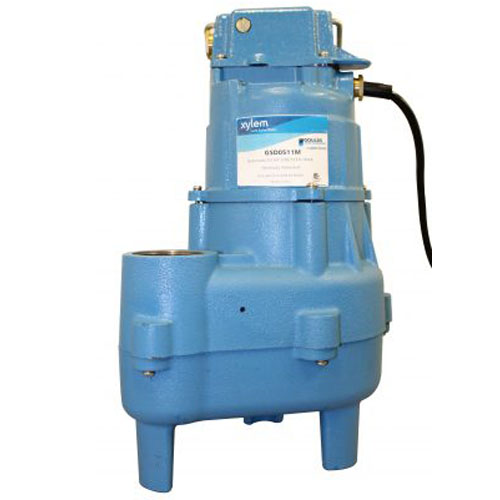

GSD0511 Goulds Pumps Cast Iron Sewage Pump (1/2 HP, 115 Volts, 1 Phase, Automatic Operation)
|
Images may be generic. Please inquire
|
Your Price:
Contact Us For a Quote
|
| Applications |
| Residential sewage systems, Water transfer, Heavy duty sump/dewatering |
| |
| Features |
| Premium mechanical seal design provides superior protection against sand and abrasive damage (silicon carbide/silicon carbide) |
|
| Cast iron motor housing and oil filled construction for optimal heat dissipation |
|
| Cast iron recessed vortex impeller for durable performance |
|
| Corrosion resistant stainless steel (300 series) motor shaft and hardware for lifetime use |
|
| Reliable mechanical switch coupled with a solid float for consistent on and off operation (automatic version) |
|
| Built in anti-siphon hole to prevent air locking |
|
| Engineered motor designed for peak hydraulic performance without overloading |
|
| Approved for residential use (CSA/CUS listed) |
|
|
Specifications
|
|
Brand
|
Goulds Pumps
|
|
Catalog Number
|
GSD0511
|
|
Type
|
SUBMERSIBLE, CAST IRON SEWAGE PUMPS
|
|
Series
|
GSD
|
|
HP
|
1/2
|
|
Volts
|
115
|
|
Phase
|
1
|
|
Operation
|
Automatic
|
|
Turn On
|
12"
|
|
Turn Off
|
4"
|
|
Hz
|
60
|
|
Type
|
Permanent Split Capacitor
|
|
Discharge
|
2" NPT
|
|
Max Amps
|
8.74
|
|
Circuit Breaker
|
15A
|
|
Insulation
|
Type B
|
|
Housing
|
Cast Iron
|
|
Impeller
|
Cast Iron
|
|
Float
|
Solid Construction
|
|
Minimum Basin Size
|
10.5" Diameter
|
|
Height
|
15"
|
|
Width
|
10.5"
|
|
Weight
|
45 Lbs
|
|
Solids Handling
|
2 spherical solids
|
|
Cord Length
|
20 SJTW power cord with NEMA grounded plug
|
|
Maximum Head
|
22
|
|
Maximum Flow Rate
|
115 gpm (5 ft head)
|
|
Max. Operating Temp
|
120 Degrees F
|
|
Cooling
|
Oil-filled
|
|
Motor Protection
|
Auto reset thermal overload
|
|
Warranty
|
1 Year
|
Item Number:
GSD0511
Manufacturer:
Goulds Pumps
Manufacturer Part No:
GSD0511
|
|
|
