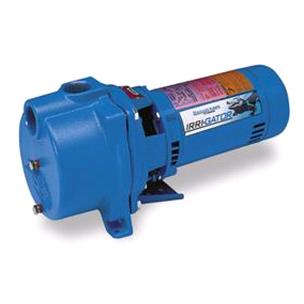

Goulds Pumps GT073 Self-Priming Centrifugal Pump (3/4 HP, 3 Phase, 1-1/2" NPT Suction & Discharge, 230/460 Voltage)
|
Images may be generic. Please inquire
|
Your Price:
Contact Us For a Quote
|
| Applications |
| Specifically designed for the following uses: Lawn sprinkling, Irrigation, Air conditioning systems, Heat pumps, Water transfer, Dewatering |
| |
| Features |
| Reprime capabilities: to 25 feet suction lift |
|
| Maximum water temperature: 140 F (60 C) |
|
| Rotation: clockwise when viewed from motor end. |
|
| Stainless steel shaft |
|
| NEMA standard |
|
| Corrosion Resistant: Electro-coat paint process is applied inside and out, then baked on. |
|
| Casing: Cast iron, 4-bolt, back pull-out design. Openings for vacuum gauge and casing drain. |
|
| Mechanical Seal: Carbon/ceramic faces, BUNA elastomers. 300 series stainless steel metal parts. Diaphragm prevents the seal from running dry. |
|
| Back pullout design allows disassembly of pump for service without disturbing piping. |
|
| Two compartment motor for easy access to motor wiring and replaceable components. |
|
|
Specifications
|
|
Brand
|
Goulds Pumps
|
|
Catalog Number
|
GT073
|
|
Type
|
Self Priming Centrifugal Pumps
|
|
Series
|
GT IRRI-GATOR
|
|
HP
|
3/4
|
|
Phase
|
3
|
|
Discharge
|
1-1/2" NPT
|
|
Suction
|
1-1/2" NPT
|
|
RPM
|
3500
|
|
Voltage
|
230/460
|
|
Hz
|
60
|
|
Enclosure
|
ODP
|
|
Length
|
19"
|
|
Height
|
9-1/4"
|
|
Weight
|
49 lbs
|
|
Casing
|
Cast Iron
|
|
Flow at 5 ft (20 psi)
|
44
|
|
Flow at 10 ft (20 psi)
|
41
|
|
Flow at 15 ft (20 psi)
|
36
|
|
Flow at 20 ft (20 psi)
|
31
|
|
Flow at 20 ft (20 psi)
|
24
|
|
Impeller Material
|
Glass filled noryl
|
|
Notes
|
See support documents
|
Item Number:
GT073
Manufacturer:
Goulds Pumps
Manufacturer Part No:
GT073
|
|
|
