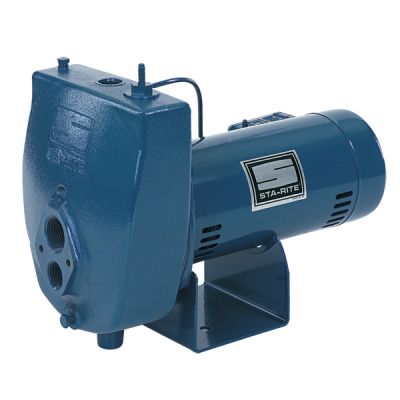

HLC-L Sta-Rite Pumps Self-Priming Convertible Jet Pump (1/2 HP, Deep Well Jet Pump, 1-1/4" Suction, 1" Discharge, 115/230V)
| Applications |
| The ProJet HL convertible jet pumps offer a proven cast iron self-priming design available in 1/2 1 HP models. The ProJet HL convertible jets utilize built-in regulators offering easier priming and better range of performance from a complete line of shallow well, 4" double pipe, 2" and 3" single pipe jet packages. |
| |
| Features |
| Quality Construction: Close-grained cast iron pump body is a rugged one-piece unit, specially treated to resist corrosion. Drain port provided for easy winterizing. |
|
| Noryl Impeller: Precision-molded for perfect balanceultra-smooth for highest performance and efficiency. |
|
| Precision-Molded Diffuser: Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser. |
|
| Pressure Switch: High quality, cut-in and differential pressure setting are adjustable. |
|
| Mechanical Shaft Seal: Precision lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication for maximum protection. |
|
| Motor Windings: Superior insulation materials protect against excessive moisture and contaminantsassures prolonged motor life. |
|
| Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiencydynamically balanced. |
|
| Heavy-Duty Ball Bearings: Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation. |
|
| Pump and Motor Shaft: 416 stainless steel for maximum corrosion resistance; one-piece threaded shaft for positive impeller drive and alignment. |
|
|
Specifications
|
|
Brand
|
Sta-Rite Pumps
|
|
Catalog Number
|
HLC-L
|
|
Type
|
Cast Iron, Self-Priming Convertible Jet Pump
|
|
Series
|
HL Series
|
|
HP
|
1/2
|
|
Type
|
Deep Well Jet Pump
|
|
Suction
|
1-1/4"
|
|
Drive
|
1"
|
|
Discharge
|
1"
|
|
Motor Voltage
|
115/230
|
|
Approx Weight (lbs)
|
42
|
|
Body
|
Cast Iron
|
|
Max Temp (F)
|
140
|
|
Pressure Gauge
|
0-100 PSI
|
|
Pressure Gauge
|
Included
|
|
Notes
|
See Support Documents
|
Item Number:
HLC-L
Manufacturer:
Sta-Rite Pumps
Manufacturer Part No:
HLC-L-01
|
|
|
