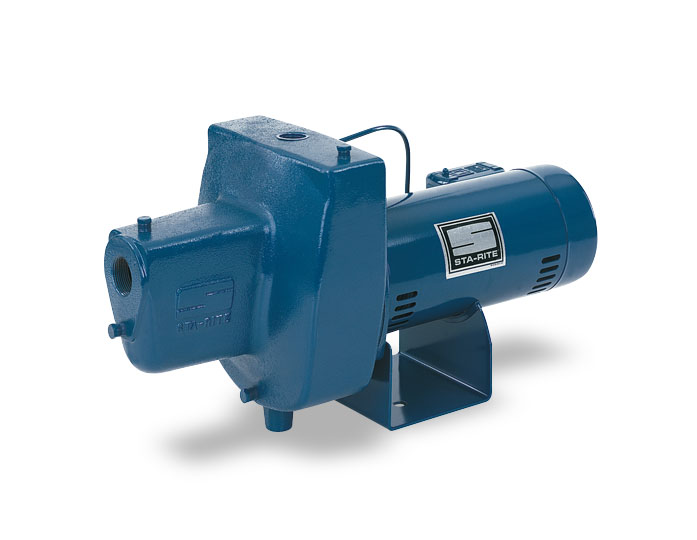

HNC-L STA-RITE Shallow Well Jet Pump (1/2 HP, 115/230V, 1 Phase, 25' Max. Lift, 11.4 GPM @ 10 FT/40 PSI)
| Applications |
| Water Systems and Irrigation for Homes, Farms and Cottages |
| |
| Features |
| The ProJet HN models provide excellent performance with good pressure for wells to 25' deep |
|
| Close-grained cast iron body, specially treated for corrosion resistance |
|
| Drain port provided for easy winterizing |
|
| Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser |
|
| Stainless steel shaft for maximum corrosion resistance |
|
| High strength Lexan nozzle and venturi for maximum resistance to corrosion and abrasion |
|
| Self-priming after the priming chamber has been filled with water |
|
|
|
|
|
|
|
|
|
|
Specifications
|
|
Brand
|
STA-RITE
|
|
Model Number
|
HNC-L
|
|
Type
|
Self-Priming Shallow Well Jet Pump
|
|
STA-RITE Pump Series
|
ProJet HN Series - Cast Iron
|
|
HP
|
1/2
|
|
Volts
|
115/230
|
|
Phase
|
1
|
|
Pressure Switch Setting
|
30-50 PSI
|
|
Suction Size
|
1-1/4" NPT
|
|
Discharge Size
|
1" NPT
|
|
Max. Lift
|
25'
|
|
Max. Temperature
|
140F
|
|
Max. Inlet Pressure
|
50 PSI
|
|
Shut-off Pressure
|
70 PSI
|
|
GPM @ 10 FT/40 PSI
|
11.4
|
|
Max. GPM
|
15
|
|
Pump Body
|
Close-Grained Cast Iron
|
|
Shaft
|
416 Stainless Steel
|
|
Impeller
|
Noryl
|
|
Nozzle & Venturi
|
Lexan
|
|
Diffuser
|
Reinforced Polypropylene
|
|
Pressure Switch
|
Included
|
|
Warranty
|
1 Year
|
|
Weight lbs.
|
47
|
|
|
|
|
|
|
|
|
|
Item Number:
HNC-L
Manufacturer:
Sta-Rite Pumps
Manufacturer Part No:
HNC
|
|
|
