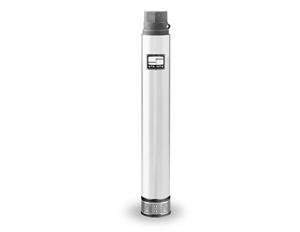

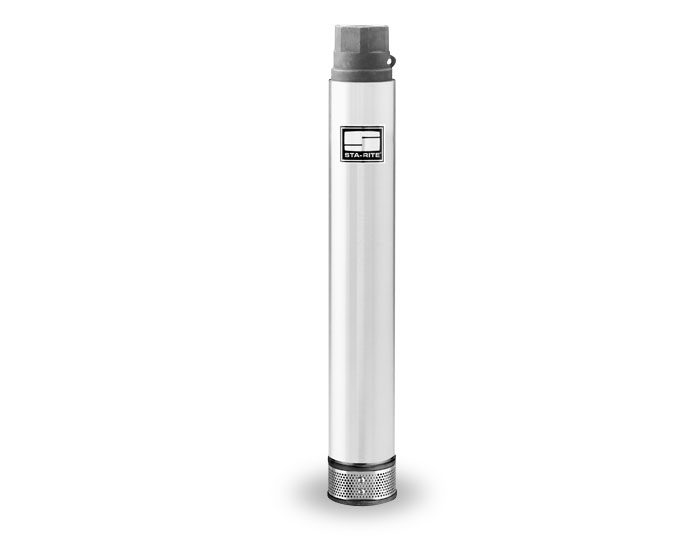

L90HF50-01 STA-RITE 4" Submersible Pump - End Only (5 HP, 12 Stages, 90 GPM @ 150' , 2" Discharge)
|
Applications |
|
Water systems for residential, industrial, commercial, multiple housing and farm use. |
|
|
|
Features |
|
FDA compliant engineered composite and stainless steel components |
|
|
Heavy-duty 300 grade stainless steel discharge provides smooth water passage to column pipe |
|
|
Large wrench flats and rope hole |
|
|
Field-proven, sealed and lubricated top bearing assembly keeps abrasives out |
|
|
20% glass-reinforced polycarbonate impellers to resist abrasives and provide smooth water passage for minimal friction loss |
|
|
Urethane diffuser bearings at each stage provide radial protection and stability and excellent resistance to sand damage |
|
|
300 grade precision cast stainless steel motor bracket |
|
|
300 grade "treated" stainless steel pump shaft is corrosion-resistant |
|
| Specifications | | Brand | STA-RITE | | Model Number | L90HF50 | | Type | High-Flo 4" Submersible Pump | | Series | 90 GPM Series | | HP | 5 | | Stages | 12 | | GPM @ Ft of Head | 90 GPM @ 150' | | Discharge | 2" | | Pump Diameter | 3-7/8" | | Required Motor Diameter | 4" | | Pump Construction | Stainless Steel | | Contents | Pump End Only | | Length In. | 41-1/2 | | Weight lbs. | 19 | | Warranty | 1 Year Warranty | | Notes & Pump Curve | See Support Documents | | Pump Manual | See Support Documents |
Item Number:
L90HF50-01
Manufacturer:
Sta-Rite Pumps
Manufacturer Part No:
L90HF50
MSRP: $857.00
Your Price: View price in cart
