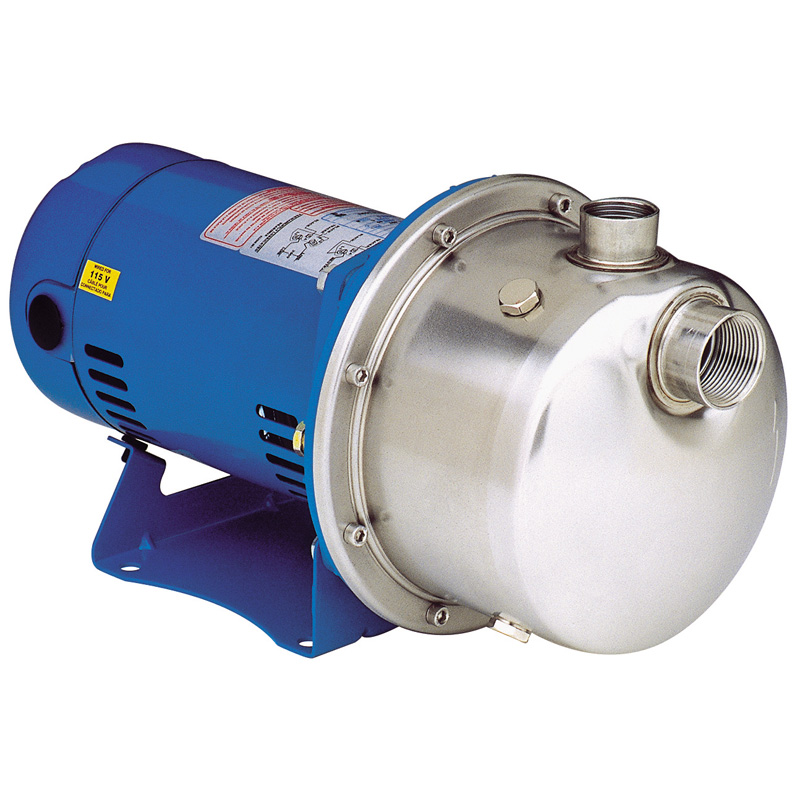

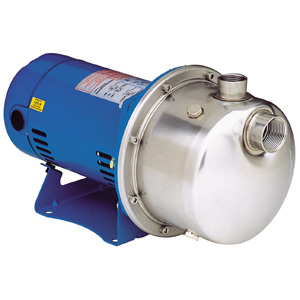

Goulds Pumps LB0512 Booster Pump (1/2 HP, Single Phase, 115/230 Voltage, ODP Enclosure)
|
Images may be generic. Please inquire
|
Your Price:
Contact Us For a Quote
|
| Applications |
| R/O systems, Chillers, Potable water boosting |
| |
| Features |
| High Head Water Boosting: The LB booster pump provides an economical alternative for small booster sets with flow requirements up to 18 GPM and heads up to 190 feet. |
|
| Casing: Stainless steel construction with NPT threaded, centerline connections, easily accessible vent, prime and drain connections with stainless steel plugs. |
|
| Engineered Thermoplastic Internal Components: Impellers, guidevanes and motor adapters are high strength and light weight engineered composite. |
|
| Mechanical Seal: Standard John Crane type 6 seal with carbon ceramic faces, BUNA elastomers and stainless steel metal parts. |
|
| Motors: NEMA standard 48Y and 56Y open drip proof enclosures with optional single phase, three phase or 575 volt TEFC configuration. |
|
|
Specifications
|
|
Brand
|
Goulds
|
|
Catalog Number
|
LB0512
|
|
Type
|
Booster Pump
|
|
Series
|
LB
|
|
HP
|
1/2
|
|
Phase
|
Single
|
|
Voltage
|
115/230
|
|
Enclosure
|
ODP
|
|
Max GPM
|
20
|
|
Max Head
|
190 Ft.
|
| Suction |
1-1/4" NPT
|
|
Discharge
|
1" NPT
|
|
PSI
|
85 PSIG
|
|
RPM
|
3500
|
|
Hz
|
60
|
Item Number:
LB0512
Manufacturer:
Goulds Pumps
Manufacturer Part No:
LB0512
|
|
|
